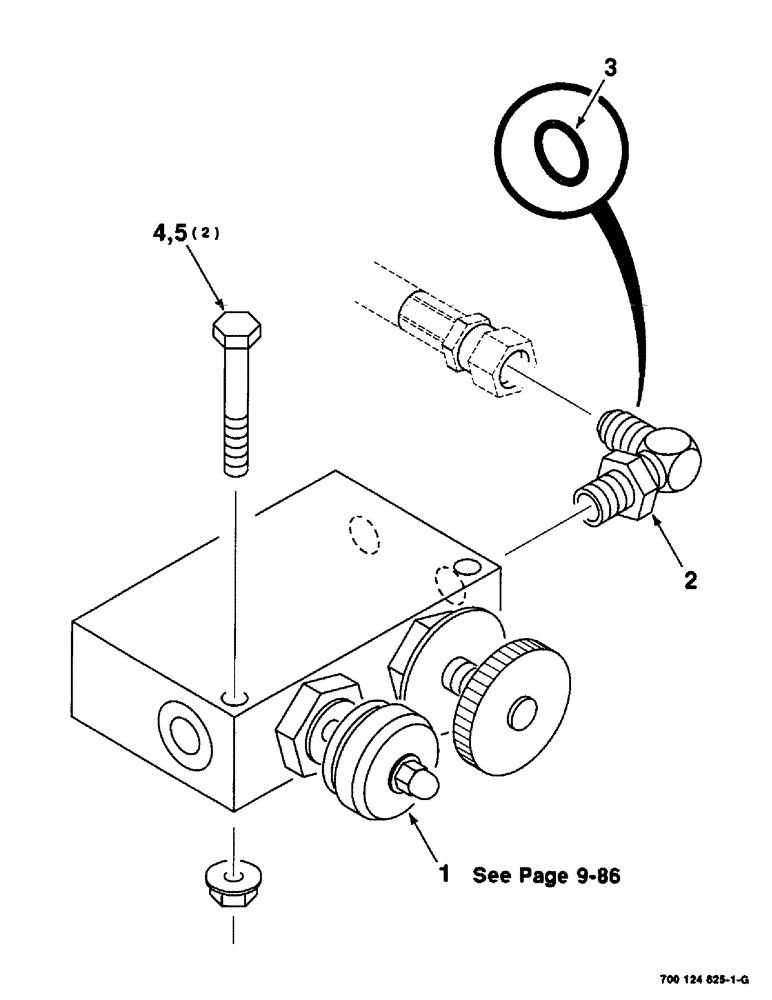

Запчасти Case IH 8465 (9-88) - MESH WRAP HYDRAULIC CONTROL VALVE SERVICE KIT, 700124625 HYD. CONTROL VALVE SERVICE KIT COMPLETE Decals & Attachments

1

700124625

KIT

VALVE - control, complete

1шт.

2

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

90° ELBOW (Includes item 3)

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

2шт.

5

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.
