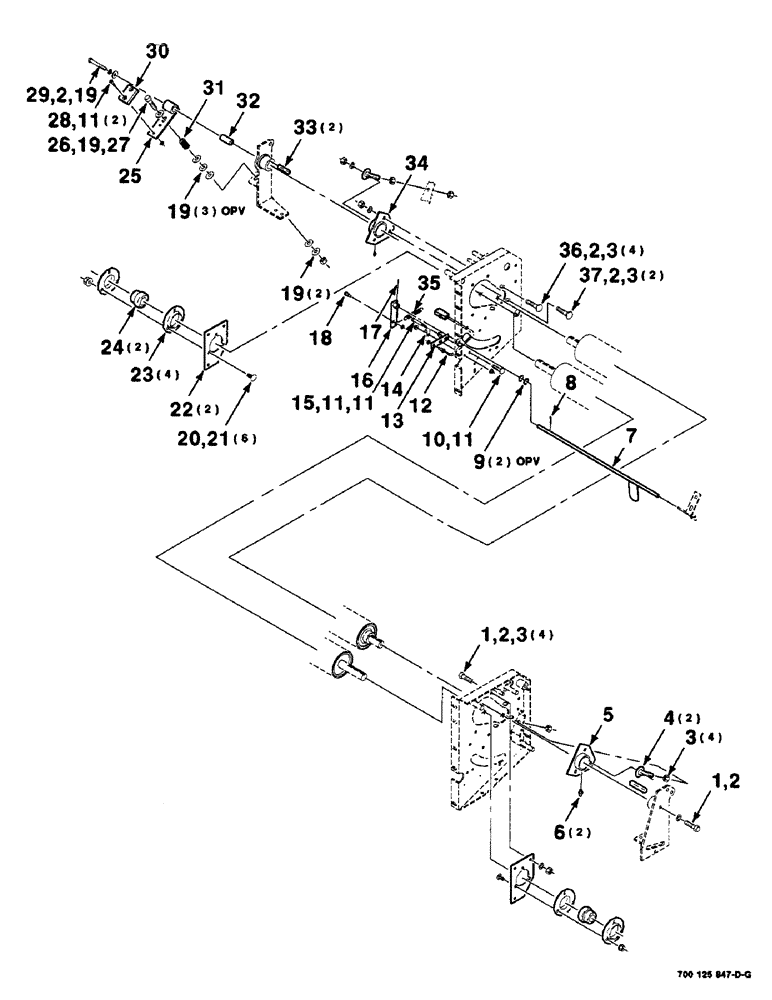

Запчасти Case IH 8465 (9-78) - MESH WRAP KIT, ROLLER SUPPORT ASSEMBLIES, SERIAL NUMBER CFH0073011 AND LATER Decals & Attachments
№
Артикул
Название
Примечание
Количество
1
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
5шт.
2
492-11038
LOCK WASHER,3/8"
12шт.
3
425-106
NUT,3/8"-16, Cl 5
14шт.
4
296608
BOLT,3/8" - 16 x 2"
- eye
2шт.
5
700125909
SUPPORT
WA - left
1шт.
6
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg
2шт.
7
700124565
SHAFT
WA
1шт.
8
432-816
COTTER PIN,1/8" x 1"
1/8" x 1"
1шт.
9
496-11041
WASHER,13/32" x 13/16" x .065", HDN
3/8 HARDENED PLAIN WASHER
2шт.
10
434-412
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5
1/4-20 X 3/4 RHSNB
1шт.
12
700119161
SWITCH
ASSEMBLY
1шт.
13
700125910
MOUNTING PARTS
MOUNT - switcH
1шт.
14
751321
CLAMP
- line
1шт.
15
413-436
BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5
1шт.
16
700124563
MOUNTING PARTS
MOUNTING WA
1шт.
17
20948R1
PIN,1/8" x 5/8", Coiled
1шт.
18
700710211
ACTUATOR
1шт.
19
495-21044
WASHER,3/8"
7шт.
20
433-512
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
6шт.
21
230-4115
LOCK NUT,5/16"-18, GA
5/16-18 HTLN GR/B
6шт.
22
700125720
PLATE
2шт.
23
50567
RATCHET
4шт.
24
50302
SPHERICAL BEARING,25.4 mm ID x 52 mm OD x 30.96 mm
2шт.
25
700125828
SUPPORT
WA - brake
1шт.
26
413-652
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
1шт.
27
231-4116
NUT,3/8"-16, GB
3/8-16 HTLN GR/B
1шт.
28
440-12512
SCREW,Cross Pan Hd, 1/4"-20 x 3/4"
GR 2 Cross Pan Hd, 1/4"-20 x 3/4"
2шт.
29
413-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
C Hex, 3/8"-16 x 2 3/4", G5
1шт.
30
700710930
PAD
- brake
1шт.
31
58107
SPRING
- compression
1шт.
32
700109003
BUSHING
1шт.
33
T13450
KEY
1/4 X 1-1/4 KEY
2шт.
34
700125721
SUPPORT
WA - right
1шт.
35
7758915
SPRING
- extension
1шт.
36
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
3/8-16 X 1 RHSNB
4шт.
37
111-361
CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5
2шт.
Выбрано товаров: 37
