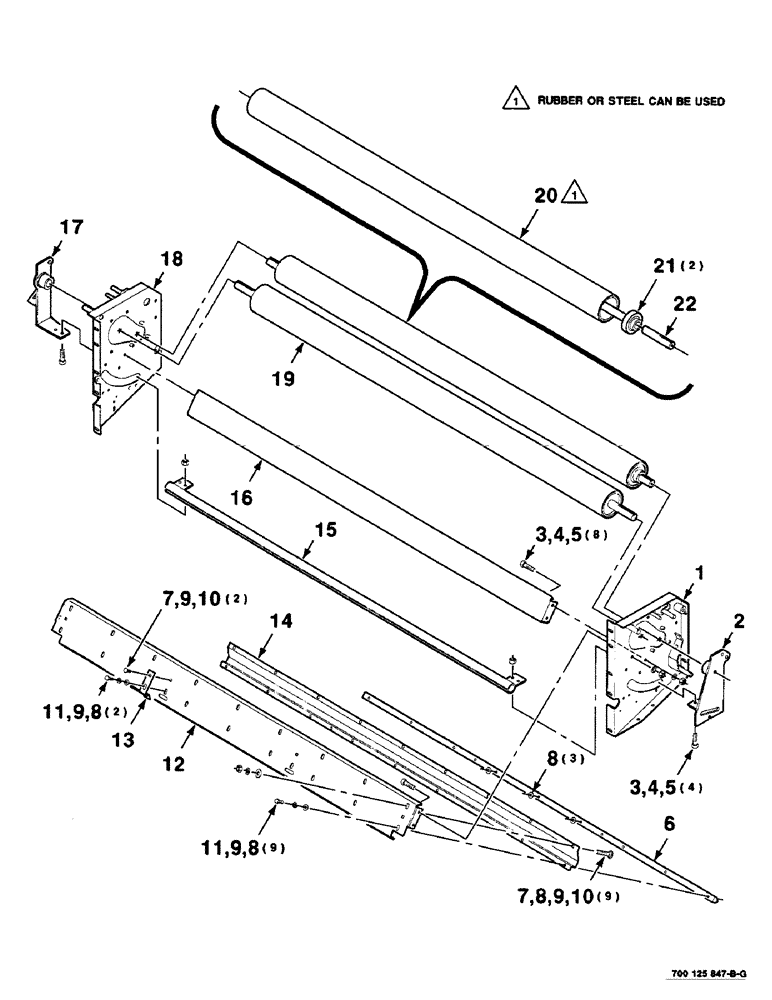

Запчасти Case IH 8465 (9-72) - MESH WRAP ROLLER ASSEMBLY, SERIAL NUMBER CFH0073011 THROUGH CFH0073271 Decals & Attachments

1

700125703

PANEL

WA - left

1шт.

2

700125821

SUPPORT

WA - left

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

4

492-11038

LOCK WASHER,3/8"

12шт.

5

425-106

NUT,3/8"-16, Cl 5

12шт.

6

700125812

BUMPER

1шт.

7

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

11шт.

8

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

23шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

22шт.

10

425-105

NUT,5/16"-18, G5

11шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

11шт.

12

700125814

SUPPORT

1шт.

13

700125817

SUPPORT

WA

1шт.

14

700126767

REINFORCEMENT

1шт.

15

700125809

KNIFE

WA

1шт.

16

700125813

SUPPORT

1шт.

17

700125825

SUPPORT

WA - right

1шт.

18

700125713

PANEL

WA - RIGHT

1шт.

19

700125694

ROLLER

ASSEMBLY (S.N. CFH0073001 thru CFH0073197)

1шт.

700127934

ROLLER

ASM. (Overrunning clutch) (S.N. CFH0073198 and later)

1шт.

20

700125700

ROLLER

- rubber

1шт.

700130730

ROLLER

- steel

1шт.

21

51680

BEARING, BALL

BEARING

2шт.

22

700125820

SHAFT

1шт.
