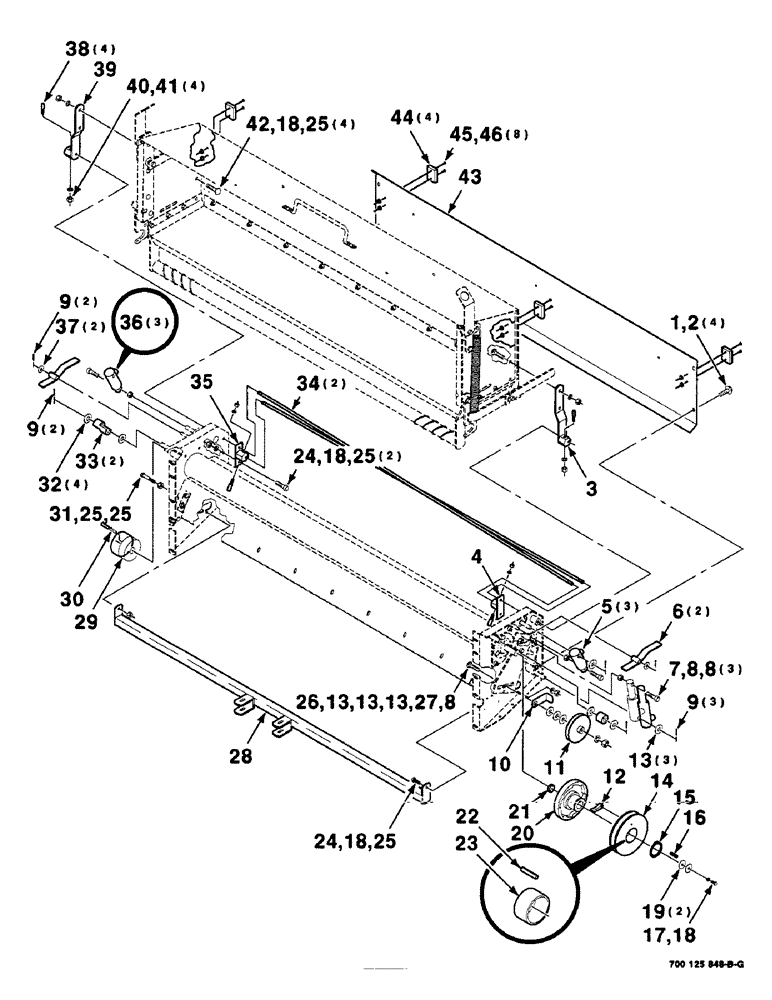

Запчасти Case IH 8465 (9-60) - MESH WRAP KIT, BOX AND ROLLER DRIVE ASSEMBLIES, SERIAL NUMBER CFH0073198 THROUGH CFH0073271 Decals & Attachments

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

3

700125752

HINGE

WA - left

1шт.

4

700125756

ADAPTER

WA - left

1шт.

5

700710874

CYLINDER

- hydraulic

3шт.

6

700125750

LATCH

WA

2шт.

7

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

3шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

7шт.

9

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

7шт.

10

700125855

GUIDE

- belt

1шт.

11

54833

FRONT IDLER

IDLER-V

1шт.

12

700127932

PAWL

1шт.

13

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

6шт.

14

700127931

SHEAVE

ASM. (Includes items 22 & 23)

1шт.

15

100-11175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

16

Q10

KEY,1/4" Sq x 1 3/8"

1/4 X 1-3/8 KEY

1шт.

17

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

18

492-11038

LOCK WASHER,3/8"

8шт.

19

700710049

WASHER

3/8 FENDER WASHER

2шт.

20

700127930

HUB

- ratchet

1шт.

21

700127933

SPACER

1шт.

22

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

23

700713302

BRONZE BUSHING,44.552 mm ID x 50.902 mm OD x 25.527 mm

BEARING - bronze

1шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

25

425-106

NUT,3/8"-16, Cl 5

9шт.

26

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 RHSNB

1шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

28

700125796

SUPPORT

WA

1шт.

29

700125830

DRUM

- brake

1шт.

30

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

1/4 X 1-1/2 GIB KEY

1шт.

31

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

32

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.

33

700710931

BUSHING

2шт.

34

700125915

SPRING

- torsion

2шт.

35

700125759

ADAPTER

WA - right

1шт.

36

700710941

SEAL KIT

KIT - seal

3шт.

37

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

38

700125760

WEDGE

4шт.

39

700125755

HINGE

WA - right

1шт.

40

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

41

425-104

NUT,1/4"-20, Cl 5

4шт.

42

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

43

700125717

SHIELD

1шт.

44

700710930

PAD

4шт.

45

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

GR 2 Cross Pan Hd, 1/4"-20 x 3/4"

8шт.

46

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.
