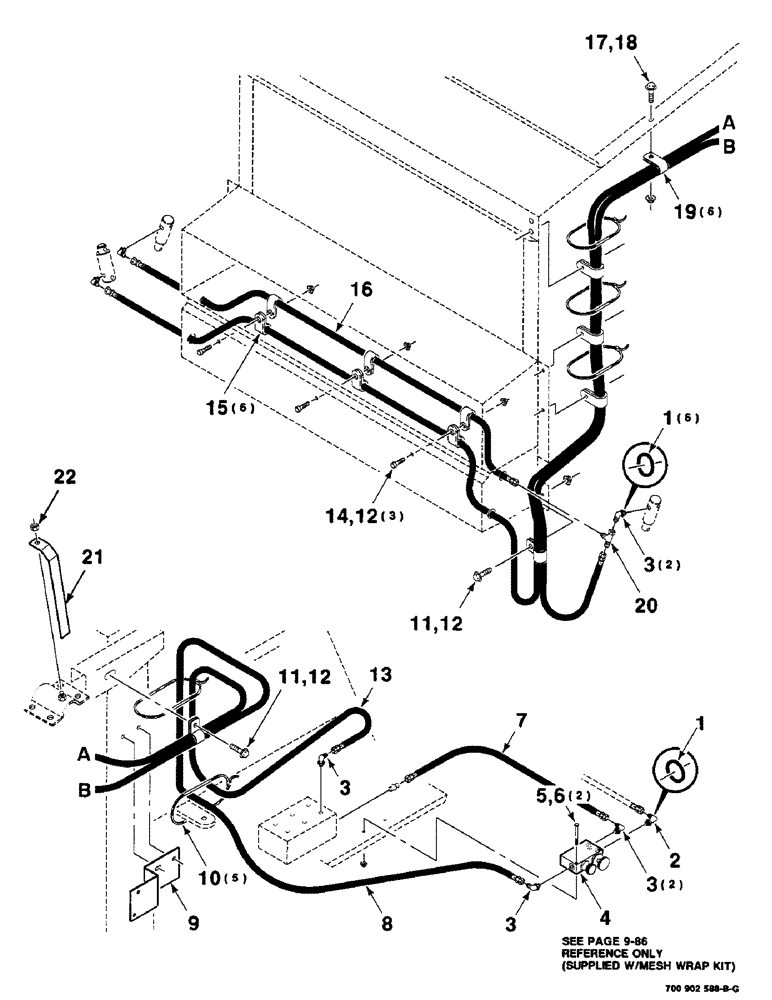

Запчасти Case IH 8465 (9-44) - MESH WRAP ADAPTER KIT, HK50596 MESH WARP ADAPTER KIT COMPLETE, S.N. CFH0073011 THROUGH CFH0073271 Decals & Attachments

HK50596

MESH WRAP ADAPTER KIT COMPLETE

1шт.

1

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

7шт.

2

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

90° ELBOW (Includes item 1)

1шт.

3

7792500

ELBOW

90° ELBOW (Includes item 1)

6шт.

4

700711967

VALVE

- control

1шт.

5

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

.25 X 1.75 UNC GR5 YZD

2шт.

6

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

7

700711082

HYDRAULIC HOSE,6.35 mm ID x 270.00 mm, SAE 100R1

6.35 mm ID x 270.00 mm, SAE 100R1

1шт.

8

700711007

HYDRAULIC HOSE,6.35 mm ID x 5400.00 mm, SAE 100R1

6.35 mm ID x 5400.00 mm, SAE 100R1

1шт.

9

700128332

SUPPORT

- switch

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

5шт.

11

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

13

700711008

HYDRAULIC HOSE,6.35 mm ID x 6600.00 mm, SAE 100R1

6.35 mm ID x 6600.00 mm, SAE 100R1

1шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Hose 3/4", Insul, 3/8" Bolt

6шт.

16

700711009

HYDRAULIC HOSE,6.35 mm ID x 1850.00 mm, SAE 100R1

6.35 mm ID x 1850.00 mm, SAE 100R1

1шт.

17

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

18

231-5146

FLANGE NUT,3/8"-16

1шт.

19

515-23254

CLAMP,1", Insul, 3/8" Bolt

Hose 1", Insul, 3/8" Bolt

6шт.

20

700701355

3 WAY CONNECTION

TEE

1шт.

21

700130845

GUIDE

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.
