(5-18) - TAILGATE ROLLER SHAFT ASSEMBLY, TAILGATE ROLLER SHAFT ASSEMBLY SHOWN BELOW IS OPTIONAL

Запчасти Case IH 8465 (5-18) - TAILGATE ROLLER SHAFT ASSEMBLY, TAILGATE ROLLER SHAFT ASSEMBLY SHOWN BELOW IS OPTIONAL (16) - BALE EJECTOR

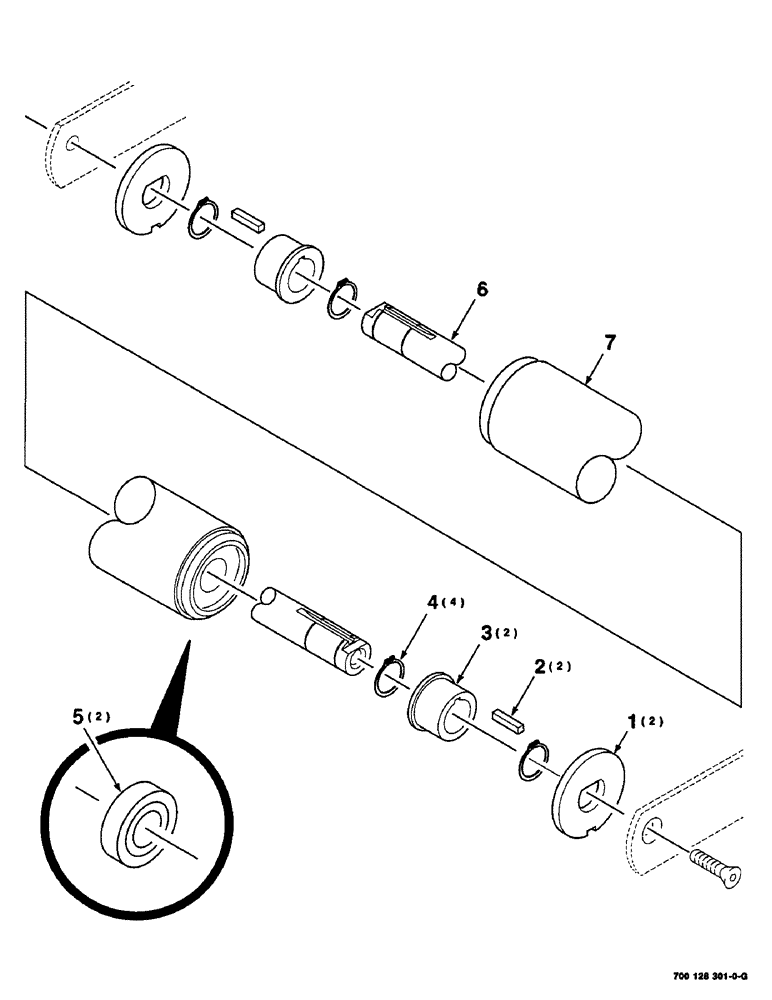

Схема запчастей Case IH 8465 - (5-18) - TAILGATE ROLLER SHAFT ASSEMBLY, TAILGATE ROLLER SHAFT ASSEMBLY SHOWN BELOW IS OPTIONAL (16) - BALE EJECTOR
5
3
2
6
1
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700128304

WASHER

- special

1шт.

2

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 X 5/16 X 1-1/2 KEY

1шт.

3

700128303

HUB

1шт.

4

100-11150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

1шт.

5

700710914

BEARING, ROLLER, CYL,55.56mm ID x 100mm OD x 24mm W

BEARING - cylindrical

1шт.

6

700128301

SHAFT

ASM. (Includes items 2, 3 and

1шт.

4)

1шт.

7

700125073

ROLLER

ASSEMBLY (Includes item 5)

1шт.
