(5-14) - TAILGATE ROLLER ASSEMBLY, SERIAL NUMBER CFH0078355 AND LATER

Запчасти Case IH 8465 (5-14) - TAILGATE ROLLER ASSEMBLY, SERIAL NUMBER CFH0078355 AND LATER (16) - BALE EJECTOR

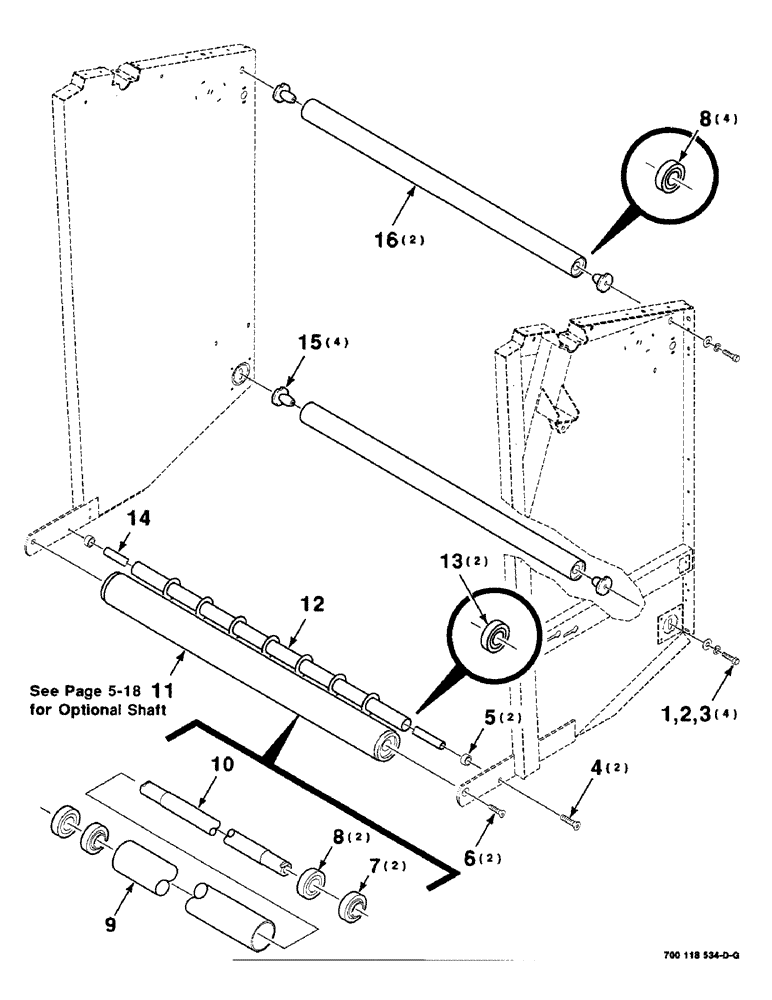

Схема запчастей Case IH 8465 - (5-14) - TAILGATE ROLLER ASSEMBLY, SERIAL NUMBER CFH0078355 AND LATER (16) - BALE EJECTOR
8
5
13
10
15
14
11
1
3
7
8
6
2
16
12
9
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

3/4-10 x 1-3/4 C

4шт.

2

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

3

705566

WASHER

3/4 HARDENED PLAIN WASHER

4шт.

4

1703453

BOLT,Flat Hd, Csk, 1/2" - 13 x 1 1/4"

1/2-13 X 1-1/4 HSFCHCS

2шт.

5

6467674

SPACER

2шт.

6

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 X 1-3/4 HSFCHCS

2шт.

7

F82059

BEARING ASSY,38.1mm ID x 80mm OD x 22mm W

BEARING - cylindrical

2шт.

8

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

6шт.

9

700130881

ROLLER

WA

1шт.

10

700130853

SHAFT

1шт.

11

700130852

ROLLER

ASSEMBLY (Includes items 7, 8, 9 & 10)

1шт.

12

700125801

ROLLER

ASSEMBLY (Includes item 13)

1шт.

13

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

BEARING - cylindrical

2шт.

14

700129347

SHAFT

- roller

1шт.

15

700100927

HUB

4шт.

16

700116170

ROLLER

ASSEMBLY (Includes item 8)

2шт.

700124612

ROLLER

ASSEMBLY (Includes item 8)

2шт.
