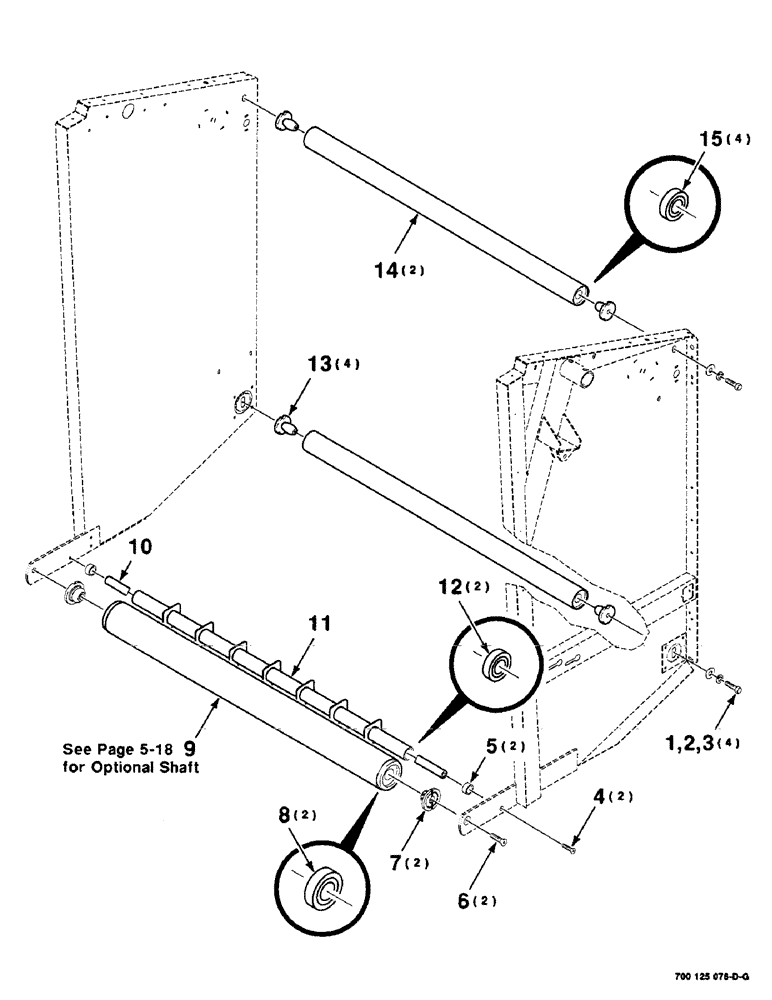

Запчасти Case IH 8465 (5-10) - TAILGATE ROLLER ASSEMBLY, SERIAL NUMBER CFH0077006 THROUGH CFH0077365 (16) - BALE EJECTOR

1

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

3/4-10 x 1-3/4 C

4шт.

2

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

3

705566

WASHER

3/4 HARDENED PLAIN WASHER

4шт.

4

61-43820

HEX SOC SCREW,FLAT, 3/8" x 1-1/4"

3/8-16 X 1-1/4 HSFCHCS

2шт.

5

6467674

SPACER

2шт.

6

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 X 1-3/4 HSFCHCS

2шт.

7

700125071

HUB

2шт.

8

700710914

BEARING, ROLLER, CYL,55.56mm ID x 100mm OD x 24mm W

BEARING - cylindrical

2шт.

9

700125073

ROLLER

ASSEMBLY (Includes item 8)

1шт.

10

700119682

SHAFT

- roller

1шт.

11

700114384

ROLLER ASSY.

ROLLER ASSEMBLY (Includes item 12)

1шт.

12

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

BEARING - cylindrical

2шт.

13

700100927

HUB

4шт.

14

700116170

ROLLER

ASSEMBLY (Includes item 15)

2шт.

700124612

ROLLER

ASSEMBLY (Includes item 15)

2шт.

15

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

4шт.
