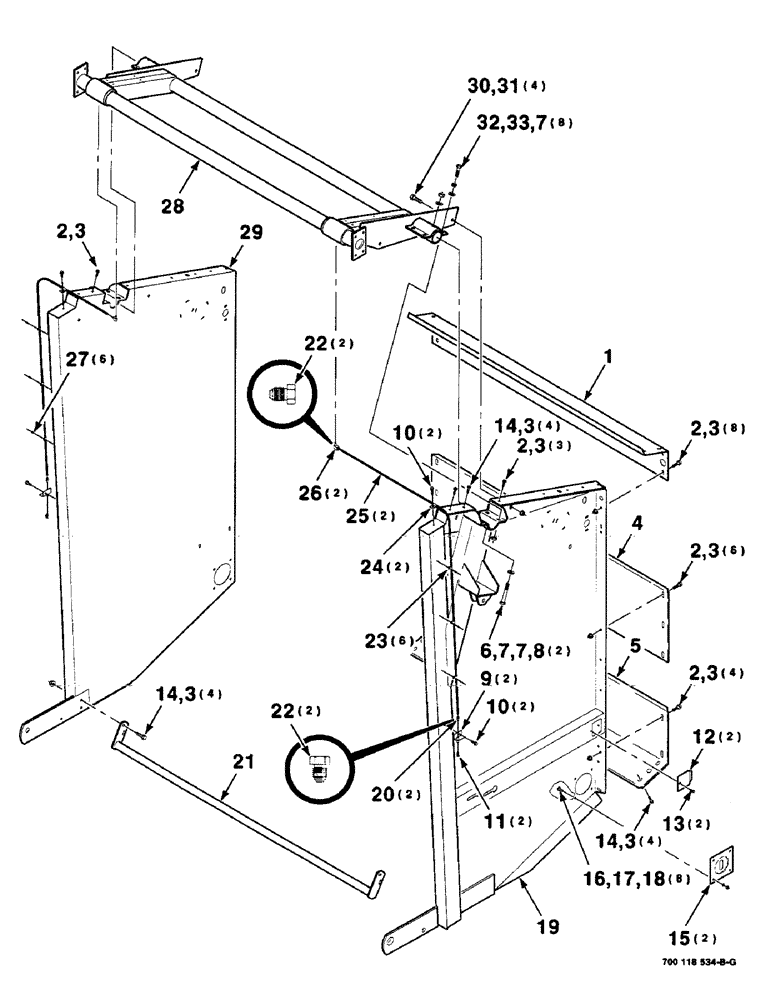

Запчасти Case IH 8465 (5-08) - TAILGATE ASSEMBLY, 700130924 TAILGATE ASSEMBLY COMPLETE, SERIAL NUMBER CFH0077366 AND LATER (16) - BALE EJECTOR
№
Артикул
Название
Примечание
Количество
700130924
GATE ASSY
TAILGATE ASSEMBLY COMPLETE
1шт.
1
700124626
SUPPORT
- tailgate
1шт.
2
409-7612
BOLT,3/8"-16 x 1.09" OAL
3/8-16 X 3/4 HWHMS
22шт.
4
700114353
SUPPORT
- smv
1шт.
5
700114351
SUPPORT
- tailgate
1шт.
6
413-864
BOLT,Hex, 1/2" - 13 x 4", Gr 5
1/2-13 X 4 C
2шт.
7
705541
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
1/2 HARDENED PLAIN WASHER
12шт.
8
230-4118
LOCK NUT,1/2"-13, GA
1/2-13 HTLN GR/B
2шт.
9
700126887
SUPPORT
WA
2шт.
10
280-5488
SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"
5/16-18 X 1/2 HWHTCTS
4шт.
11
219-93
LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF
2шт.
12
700125158
LARGE PLATE
PLATE
2шт.
13
187-1036
SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"
1/4-20 X 1/2 HWHTCTS
2шт.
14
121-226
SERRATED BOLT,Hex, 3/8" - 16 x 1"
12шт.
15
700125148
PLUG
2шт.
16
433-512
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
8шт.
18
425-105
NUT,5/16"-18, G5
8шт.
19
700129154
PANEL
SIDE WA - tailgate, left (S.N. CFH0077001 THRU CFH0078354)
1шт.
700130860
SIDE ASSY.
SIDE WA - tailgate, left (S.N. CFH0078355 AND LATER)
1шт.
20
8746778
TUBE NUT
CONNECTOR (Includes item 22)
2шт.
21
700122470
SUPPORT
GUIDE WA
1шт.
22
219-302
TUBE NUT
- compression
4шт.
23
515-2179
CLAMP,5/16", Insul, 1/4" Bolt
6шт.
24
515-2363
CLAMP,M6.3, Insul, 3/8" Bolt
2шт.
25
995059R1
TUBE
- copper
2шт.
26
51200288
ELBOW
(Includes item 22)
2шт.
27
64667
FLEXIBLE HOSE
POP RIVET
6шт.
28
700129167
SUPPORT
WA
1шт.
29
700129162
PANEL
SIDE WA - tailgate, right
1шт.
30
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
4шт.
31
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
4шт.
32
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
8шт.
33
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
8шт.
