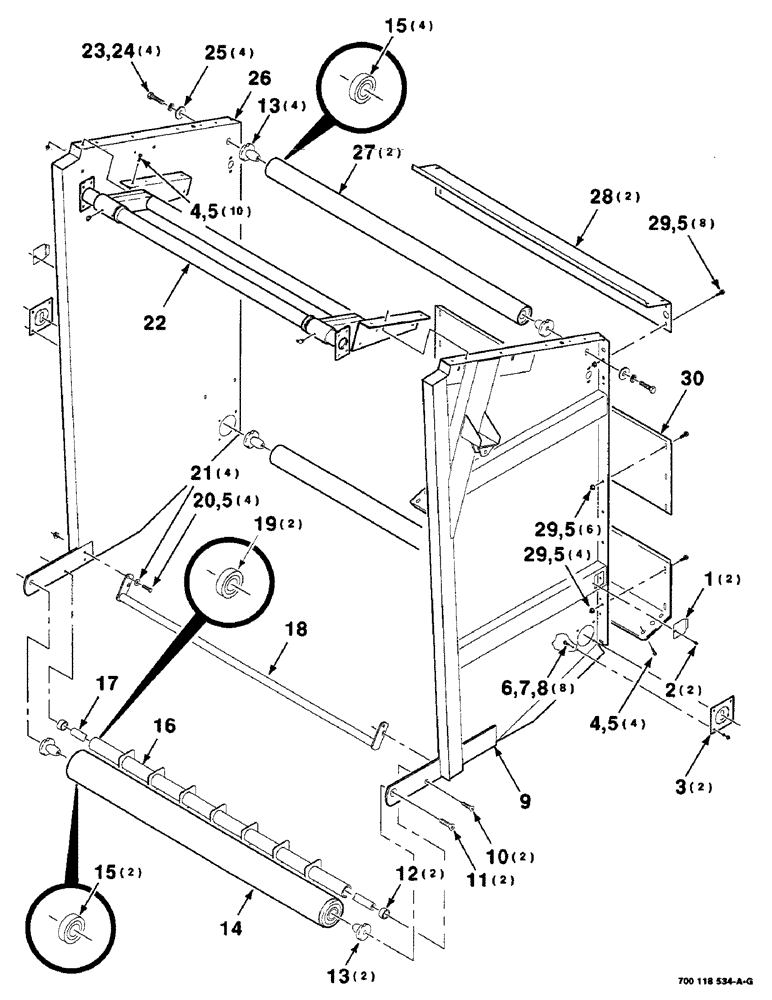

Запчасти Case IH 8465 (5-04) - TAILGATE ASSEMBLY, SERIAL NUMBER CFH0077001 THROUGH CFH0077005 (16) - BALE EJECTOR

1

700125158

LARGE PLATE

PLATE

2шт.

2

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

1/4-20 X 1/2 HWHTCTS

2шт.

3

700125148

PLUG

2шт.

4

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

14шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

36шт.

6

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

8

425-105

NUT,5/16"-18, G5

8шт.

9

700114321

SIDE ASSY.

SIDE WA - left, tailgate

1шт.

10

61-43820

HEX SOC SCREW,FLAT, 3/8" x 1-1/4"

3/8-16 X 1-1/4 HSFCHCS

2шт.

11

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 X 1-3/4 HSFCHCS

2шт.

12

6467674

SPACER

2шт.

13

700100927

HUB

6шт.

14

700114379

ROLLER ASSY.

ROLLER ASSEMBLY (Includes item 15)

1шт.

15

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

6шт.

16

700114384

ROLLER ASSY.

ROLLER ASSEMBLY (Includes item 19)

1шт.

17

700119682

SHAFT

- roller

1шт.

18

700122470

SUPPORT

GUIDE WA

1шт.

19

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

BEARING - cylindrical

2шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

21

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

22

700114273

HINGE

SUPPORT WA - tailgate

1шт.

23

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

3/4-10 x 1-3/4 C

4шт.

24

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

25

705566

WASHER

3/4 HARDENED PLAIN WASHER

4шт.

26

700114323

SIDE ASSY.

SIDE WA - right, tailgate

1шт.

27

700116170

ROLLER

ASSEMBLY (Includes item 15)

2шт.

700124612

ROLLER

ASSEMBLY (Includes item 15)

2шт.

28

700114351

SUPPORT

- tailgate

2шт.

29

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

18шт.

30

700114353

SUPPORT

- smv

1шт.
