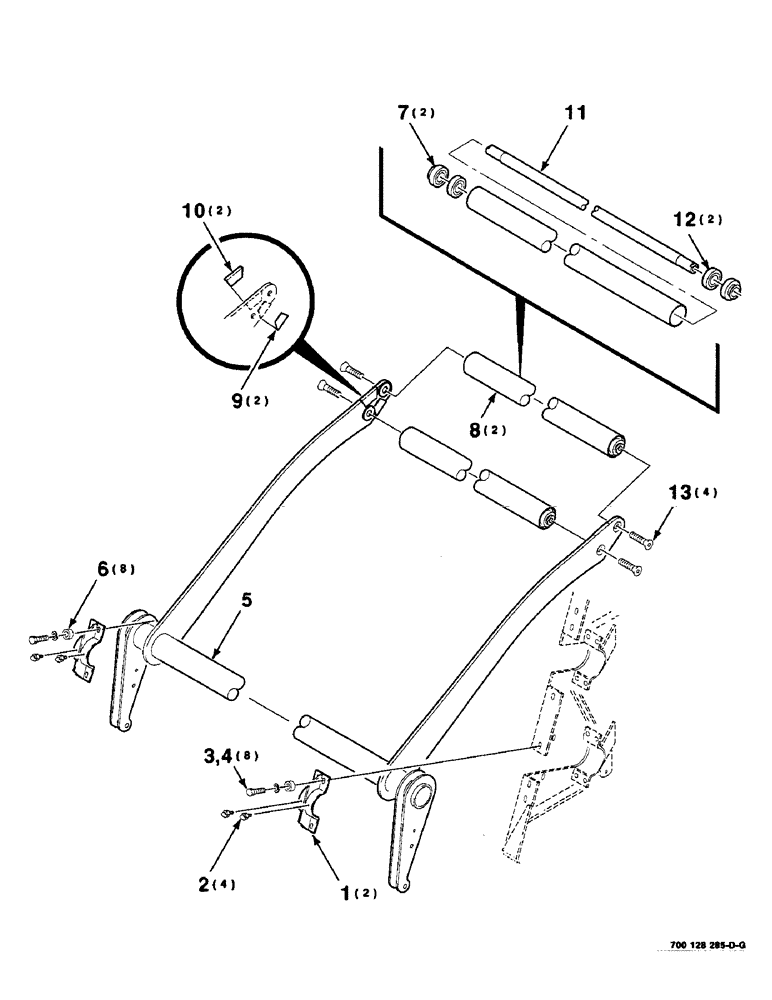

Запчасти Case IH 8465 (6-28) - BALE TENSION ROLLER ASSEMBLY, SERIAL NUMBER CFH0078355 THROUGH CFH0122122 (14) - BALE CHAMBER

1

700107957

CLAMP

WA

2шт.

2

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45° ZERK

4шт.

3

61-34424

HEX SOC SCREW,7/16"-14 x 1 1/2"

7/16-14 X 1-1/2 HSHCS SPL

8шт.

4

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

5

700130865

ARM

WA (Includes items 9 & 10)

1шт.

6

6520233

BUSHING

8шт.

7

F82059

BEARING ASSY,38.1mm ID x 80mm OD x 22mm W

BEARING - cylindrical

2шт.

8

700130862

ROLLER

ASSEMBLY (Includes items 7, 11 & 12)

2шт.

9

700130868

PLATE

WEAR PLATE - lower

2шт.

10

700130867

PLATE

WEAR PLATE - upper

2шт.

11

700130863

SHAFT

1шт.

12

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

2шт.

13

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 X 1-3/4 HSFCHCS SPL

4шт.
