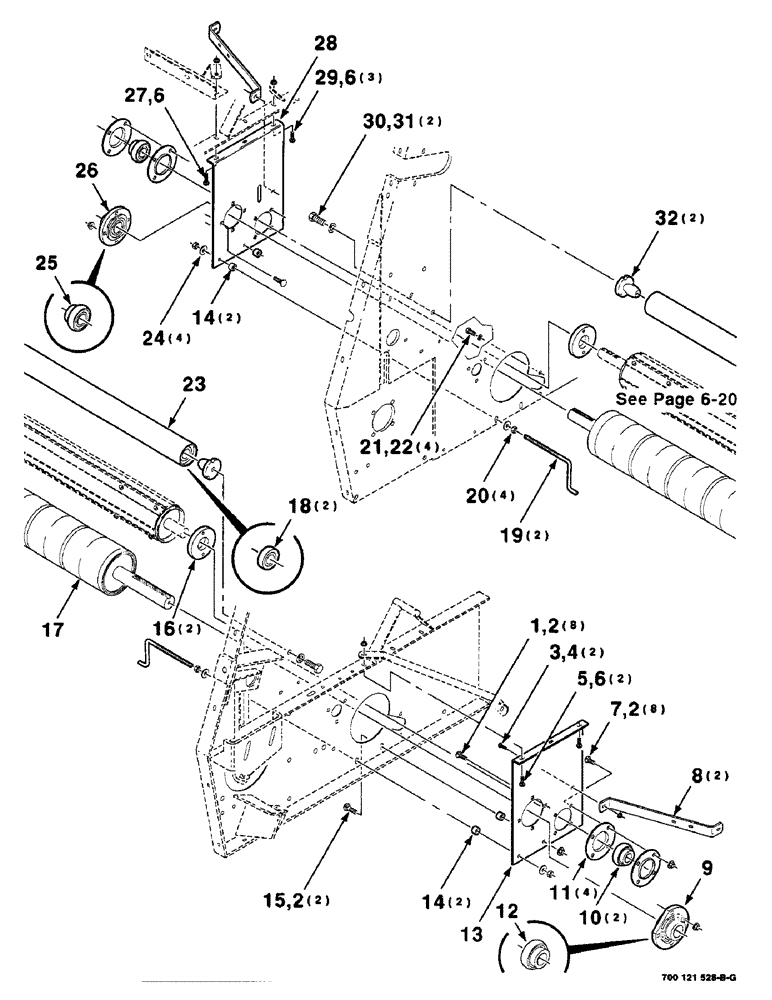

Запчасти Case IH 8465 (6-16) - ROLLERS ASSEMBLY, LOWER, SERIAL NUMBER CFH0077001 THROUGH CFH0077005 (14) - BALE CHAMBER

1

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

8шт.

2

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

18шт.

3

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

5

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

6

231-5146

FLANGE NUT,3/8"-16

6шт.

7

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

8шт.

8

700107962

STRAP

2шт.

9

700109753

BEARING ASSY,97 mm ID x 108 mm OD x 33 mm

BEARING ASSEMBLY (Includes item 12)

1шт.

10

50468

SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 22, 43.66 mm

- spherical

2шт.

11

663562R1

FLANGE

- bearing

4шт.

12

712158

SPHERICAL BEARING,2" ID x 100 mm OD

BEARING - spherical

1шт.

13

700122714

SUPPORT

- left, lower

1шт.

14

700100054

SPACER

4шт.

15

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 RHSNB

2шт.

16

700122771

SPACER

RING - grass

2шт.

17

700707164

ROLLER

ASSEMBLY

1шт.

18

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- spherical

2шт.

19

700114407

CRANK

ROD - guide

2шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

21

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

23

700116170

ROLLER

ASSEMBLY (Includes item 18)

1шт.

700124612

ROLLER

ASSEMBLY (Includes item 18)

1шт.

24

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

25

51318

BEARING

- spherical

1шт.

26

700110467

BEARING ASSY,44.45 mm ID x 92.44 mm OD x 29 mm

BEARING ASSEMBLY (Includes item 25)

1шт.

27

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

28

700122715

SUPPORT

- right, lower

1шт.

29

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3шт.

30

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

3/4-10 x 1-3/4 C

2шт.

31

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

32

700100927

HUB

2шт.
