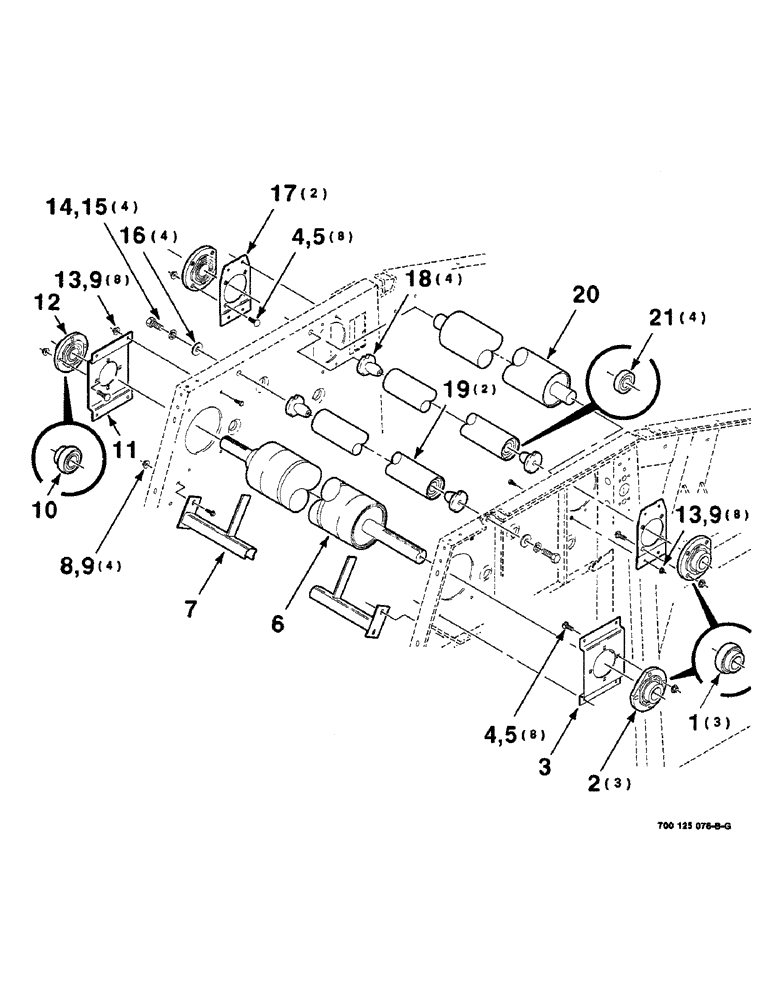

Запчасти Case IH 8465 (6-12) - ROLLERS AND FORMING BELT GUIDE ASSEMBLY, UPPER, SERIAL NUMBER CFH0077001 THROUGH CFH0077005 (14) - BALE CHAMBER

1

712158

SPHERICAL BEARING,2" ID x 100 mm OD

BEARING - spherical

3шт.

2

700109753

BEARING ASSY,97 mm ID x 108 mm OD x 33 mm

BEARING ASSEMBLY (Includes item 1)

3шт.

3

700107963

SUPPORT

- roller, left

1шт.

4

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

16шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

16шт.

6

700707164

ROLLER

ASSEMBLY

1шт.

7

700107930

GUIDE

- belt

1шт.

8

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

4шт.

9

231-5146

FLANGE NUT,3/8"-16

20шт.

10

51318

BEARING

- spherical

1шт.

11

700107964

SUPPORT

- roller, right

1шт.

12

700110467

BEARING ASSY,44.45 mm ID x 92.44 mm OD x 29 mm

BEARING ASSEMBLY (Includes item 10)

1шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

16шт.

14

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

3/4-10 x 1-3/4 C

4шт.

15

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

16

705566

WASHER

3/4 HARDENED PLAIN WASHER

4шт.

17

700114406

PLATE

SUPPORT - roller

2шт.

18

700100927

HUB

- roller

4шт.

19

700116170

ROLLER

ASSEMBLY (Includes item 21)

2шт.

700124612

ROLLER

ASSEMBLY (Includes item 21)

2шт.

20

700114372

ROLLER

- upper, rear

1шт.

21

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

4шт.
