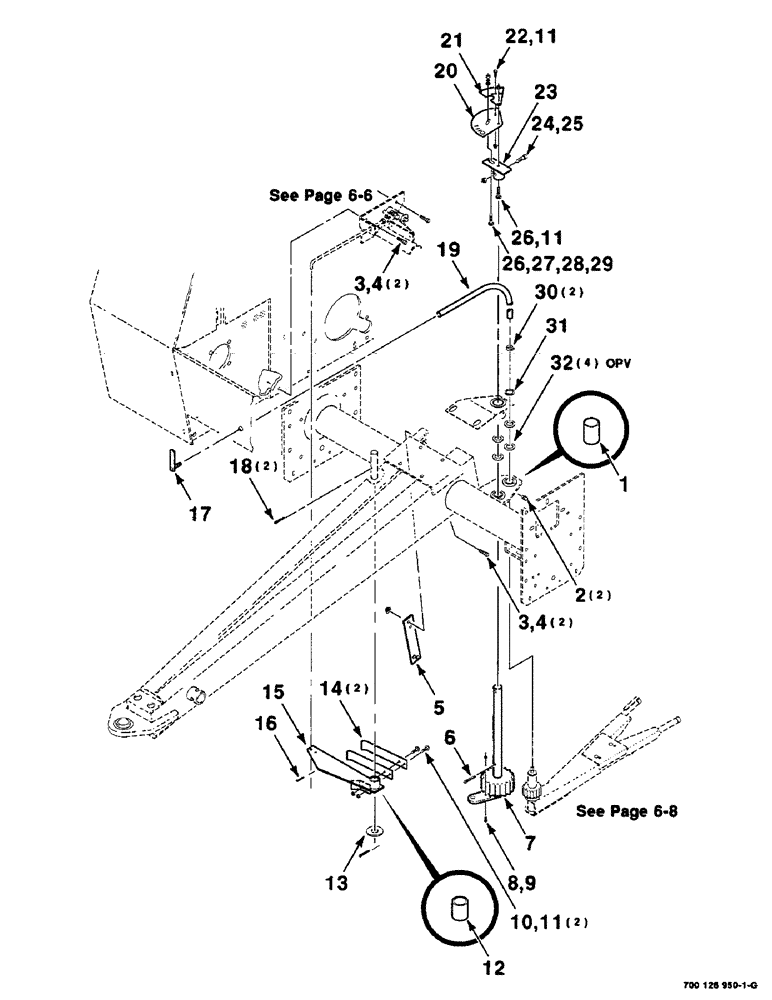

Запчасти Case IH 8465 (6-04) - GEARBOX AND THREADER MOUNTING ASSEMBLIES (14) - BALE CHAMBER

1

740514

BUSHING,31.81mm ID x 38.2mm OD x 50.8mm L

- oilite

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

4

231-5146

FLANGE NUT,3/8"-16

4шт.

5

700119936

GUIDE

PLATE

1шт.

6

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

7

700115955

SHAFT

WA

1шт.

8

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16-18 X 1-1/4 C

1шт.

9

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

1шт.

10

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

12

740217

BUSHING

1шт.

13

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

1 X 10 GAUGE NRMB

1шт.

14

700710074

LARGE PLATE

SPRING - leaf

2шт.

15

700122971

LEVER

WA (Includes item 12)

1шт.

16

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

1шт.

17

700107974

INDICATOR

WA

1шт.

18

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

2шт.

19

700707201

HOSE

1шт.

20

700127953

DISC

- switching

1шт.

21

700127003

PLATE

- delay

1шт.

22

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16-18 X 1/2 C

1шт.

23

700125056

DISC

PLATE WA

1шт.

24

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

3/8-16 X 1-3/4 HSHCS SPL

1шт.

25

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

26

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

27

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

29

425-105

NUT,5/16"-18, G5

1шт.

30

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, #06, .44/.78 Type F Worm

2шт.

31

103-11125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

32

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

4шт.
