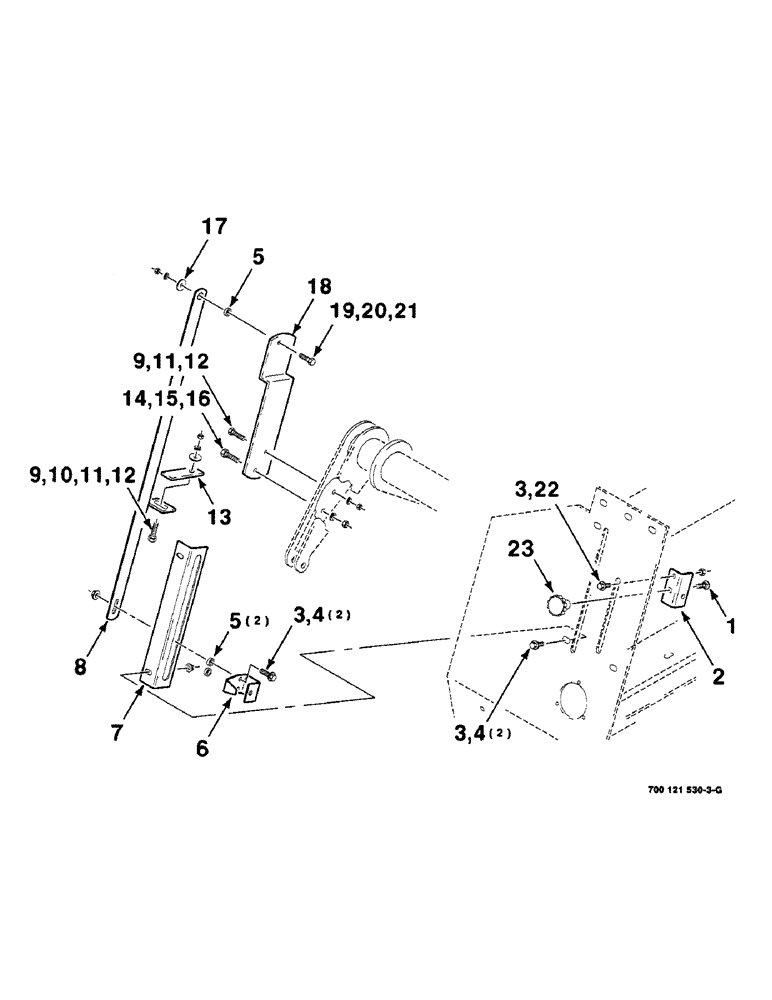

Запчасти Case IH 8465 (6-02) - INDICATOR ASSEMBLY, BALE SIZE (14) - BALE CHAMBER

1

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

2

700115974

SUPPORT

- switch

1шт.

3

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

5шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

5

700115973

SPACER

3шт.

6

700115976

INDICATOR

1шт.

7

700115983

ANGLE

1шт.

8

700115988

LINK ASSY.

LINK WA

1шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

1713155

FLAP

- counter

1шт.

14

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

17

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

1шт.

18

700115982

SUPPORT

ARM

1шт.

19

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

425-105

NUT,5/16"-18, G5

1шт.

22

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN GR/B

1шт.

23

700707234

BUTTON

KNOB

1шт.
