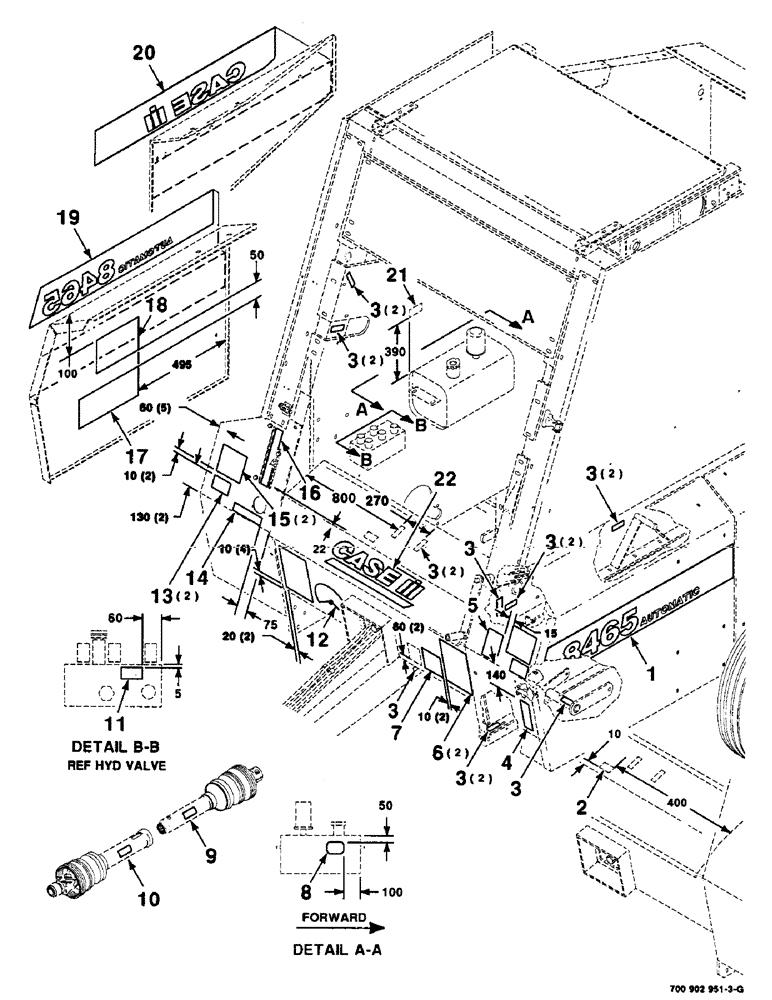

Запчасти Case IH 8465 (9-06) - DECALS AND LOCATION DIAGRAM, FRONT, SERIAL NUMBER CFH0078355 AND LATER Decals & Attachments

1

700714341

DECAL

- combo, left front

1шт.

2

700712512

DECAL

- spring

1шт.

3

7889306

DECAL

- lube

15шт.

4

878694

REFLECTOR

- amber

1шт.

5

700709165

DECAL

- information

1шт.

6

8888398

DECAL

- danger

2шт.

7

878157

DECAL

- notice

1шт.

8

700710456

DECAL

- oil

1шт.

9

1326528C1

DECAL

- danger, powerline

1шт.

10

80672C1

DECAL

- danger, powerline

1шт.

11

700710298

DECAL

- adjust

1шт.

12

700707206

DECAL

- dial, indicator

1шт.

13

7778202

DECAL

- oil chains

2шт.

14

700710097

DECAL

- information

1шт.

15

700714229

DECAL

- warning

2шт.

16

700706193

DECAL

- dial

1шт.

17

700712537

DECAL

- trouble shooting

1шт.

18

700713667

DECAL

- routing

1шт.

19

700714342

DECAL

- combo, right front

1шт.

20

700714315

DECAL

- combo, right rear

1шт.

21

700709383

DECAL

- notice, pressure

1шт.

22

192848A2

DECAL

- stripe, front

1шт.
