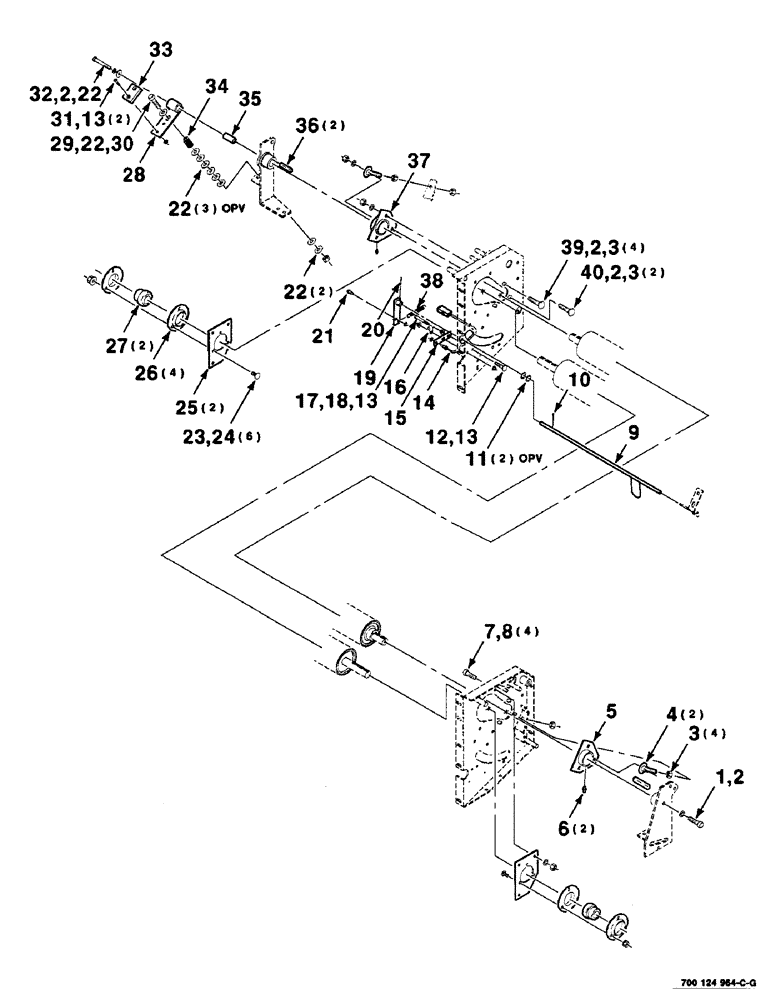

Запчасти Case IH 8465 (7-26) - MESH WRAP, ROLLER SUPPORT ASSEMBLIES, SERIAL NUMBER CFH0073272 AND LATER (12) - MAIN FRAME

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

2

492-11038

LOCK WASHER,3/8"

8шт.

3

425-106

NUT,3/8"-16, Cl 5

10шт.

4

296608

BOLT,3/8" - 16 x 2"

- eye

2шт.

5

700125909

SUPPORT

WA - left

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

7

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

9

700124565

SHAFT

WA

1шт.

10

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

11

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

12

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

1шт.

13

1703354

NUT

1/4-20 HFTLN GR/G

4шт.

14

700119161

SWITCH

ASSEMBLY

1шт.

15

700125910

MOUNTING PARTS

MOUNT - switch

1шт.

16

751321

CLAMP

- line

1шт.

17

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

19

700124563

MOUNTING PARTS

MOUNTING WA

1шт.

20

20948R1

PIN,1/8" x 5/8", Coiled

1шт.

21

700710211

ACTUATOR

1шт.

22

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

7шт.

23

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

24

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

6шт.

25

700125720

PLATE

2шт.

26

50567

RATCHET

4шт.

27

50302

SPHERICAL BEARING,25.4 mm ID x 52 mm OD x 30.96 mm

2шт.

28

700125828

SUPPORT

WA - brake

1шт.

29

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

30

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

1шт.

31

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

GR 2 Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

32

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

1шт.

33

700710930

PAD

- brake

1шт.

34

58107

SPRING

- compression

1шт.

35

700109003

BUSHING

1шт.

36

T13450

KEY

1/4 X 1-1/4 KEY

2шт.

37

700125721

SUPPORT

WA - right

1шт.

38

7758915

SPRING

- extension

1шт.

39

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

40

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

2шт.
