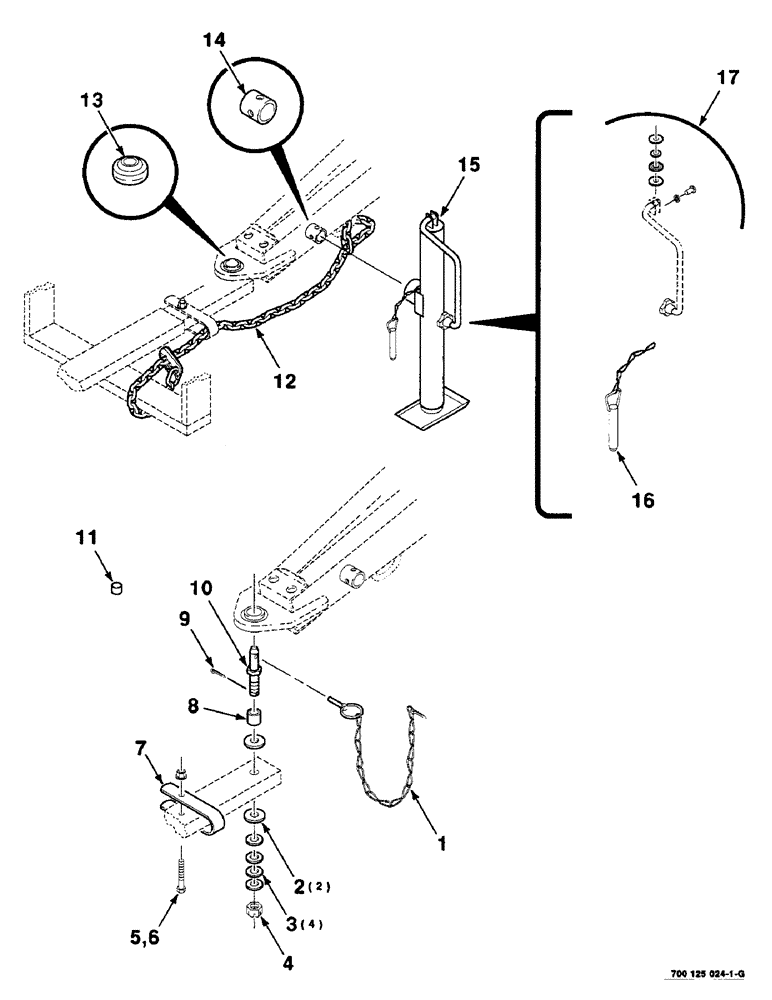

Запчасти Case IH 8465 (7-02) - HITCH AND JACK ASSEMBLY (12) - MAIN FRAME

1

63768

PIN

AND CHAIN - linch

1шт.

2

700114468

WASHER,26.19mm ID x 63.5mm OD x 6mm Thk

- special

2шт.

3

495-11106

WASHER,1", SAE

4шт.

4

425-1216

SLOTTED NUT,Hex, 1"-8, G5

1шт.

5

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

6

230-41110

LOCK NUT,5/8"-11, GA

5/8-11 HTLN GR/B

1шт.

7

148558C1

CLEVIS

- safety, chain

1шт.

8

6649982

HUB

- idler

1шт.

9

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

10

700125679

HITCH PIN

PIN - hitch

1шт.

11

252411

SPACER

1шт.

12

700705598

CHAIN (CE)

SAFETY - chain

1шт.

13

D51609

BALL JOINT

BEARING - tongue

1шт.

14

6227391

TUBE,2" OD, 1.88" Length

- wa

1шт.

15

700706826

JACK

1шт.

16

700706640

PIN

AND CHAIN ASSEMBLY

1шт.

17

700711826

JACK

KIT - service, T.W.

1шт.
