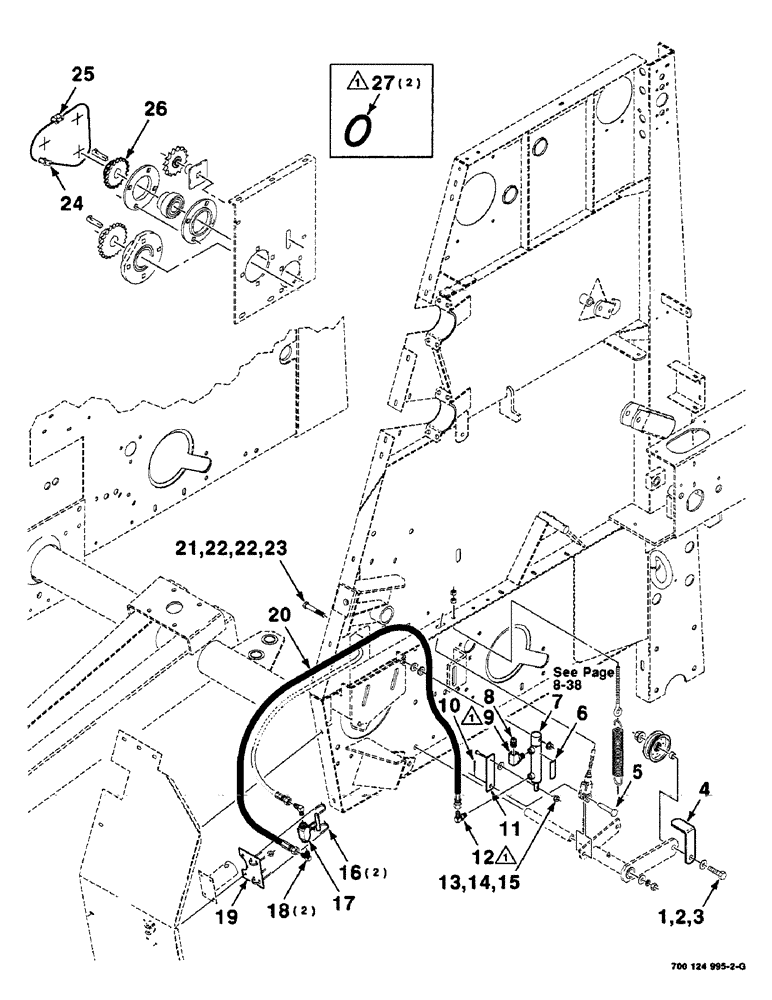

Запчасти Case IH 8465 (8-36) - MESH WRAP, STARTING ROLL DRIVE, PICKUP CLUTCH, SERIAL NUMBER CFH0073272 AND LATER (07) - HYDRAULICS

1

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

5/8-11 X 2-3/4 C

1шт.

2

700711165

WASHER,17.3mm ID x 45.21mm OD x 4.06mm Thk

5/8 HARDENED WIDE PLAIN WASHER

1шт.

3

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

4

700124977

ANGLE

1шт.

5

14145H

CLEVIS PIN,1/2" x 2.094"

1/2 X 1-3/4 CLEVIS PIN

1шт.

6

700715705

DECAL

- operational

1шт.

7

700711411

CYLINDER

ASSEMBLY - hydraulic

1шт.

8

700704639

PLUG

- vented

1шт.

9

7791916

ELBOW

- 90° (Includes item 27)

1шт.

10

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

11

700124976

LINK

STRAP

1шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90° (Includes item 27)

1шт.

14

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

1шт.

15

1703354

NUT

1/4-20 HFTLN GR/G

1шт.

16

529070

CABLE TIE,368.3mm L

TIE - cable

2шт.

17

700711345

VALVE

- needle

1шт.

18

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

1/4 X 90° ELBOW

2шт.

19

700136007

PLATE

- mounting

1шт.

20

7796840

HOSE

- hydraulic

1шт.

21

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

1шт.

22

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

23

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

24

241-1316

LINK,19.05mm Pitch

LINK - connector, #60 (W/Spring clip)

1шт.

25

241-1116

LINK,Chain, 19.05mm Pitch

CHAIN - link, R/C #60

1шт.

26

700124968

SPROCKET ASSY.

SPROCKET WA - 60B22 tooth

1шт.

27

738468

O-RING

2шт.

13

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
