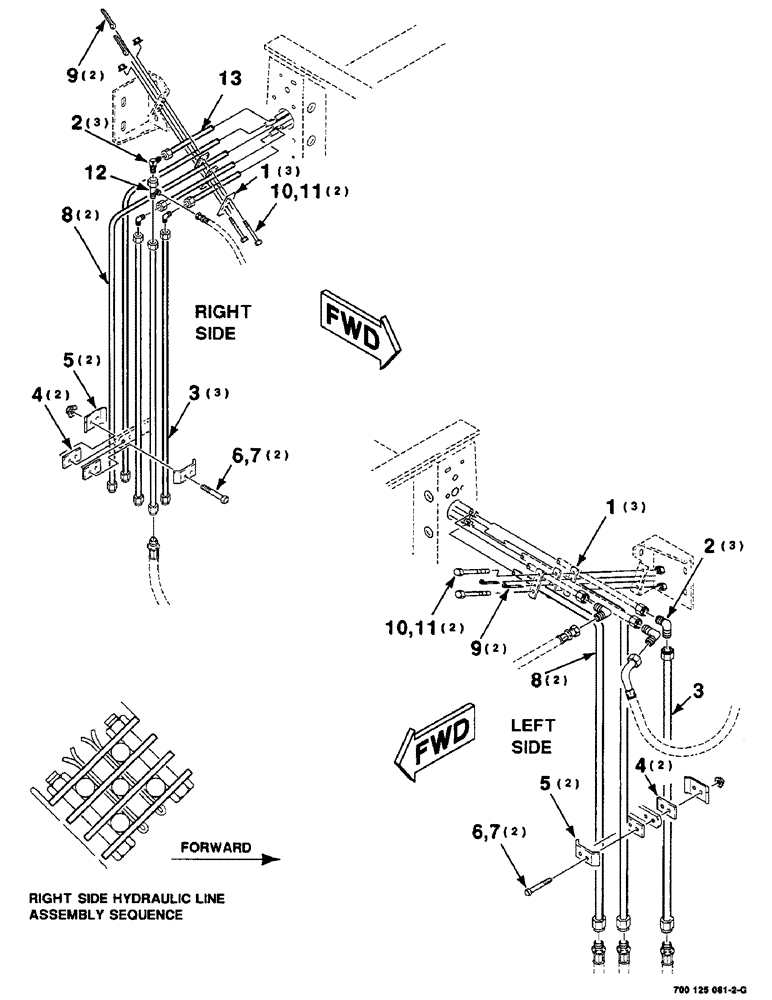

Запчасти Case IH 8465 (8-30) - HYDRAULIC ASSEMBLY, CROSS LINES (07) - HYDRAULICS

1

700116115

STRAP

6шт.

2

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

- 90°

6шт.

3

700707268

LINE

- hydraulic

4шт.

4

700116114

SHIM

4шт.

5

700116034

CLAMP

4шт.

6

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16-18 X 2-1/4 C

4шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

8

700707434

LINE

- hydraulic

4шт.

9

432-1036

COTTER PIN,5/32" x 2 1/4"

PIN, SPLIT (COTTER), 5/32" x 2 1/4"

4шт.

10

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

11

232-4114

LOCK NUT,1/4"-20, GC

1/4-20 HTLN GR B

4шт.

12

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

13

700707435

LINE

- hydraulic

1шт.
