(8-26) - HYDRAULIC CYLINDER ASSEMBLY, TAILGATE, 700710626 HYDRAULIC CYL. COMPLETE,1-3/4" BORE X 32" STROKE

Запчасти Case IH 8465 (8-26) - HYDRAULIC CYLINDER ASSEMBLY, TAILGATE, 700710626 HYDRAULIC CYL. COMPLETE,1-3/4" BORE X 32" STROKE (07) - HYDRAULICS

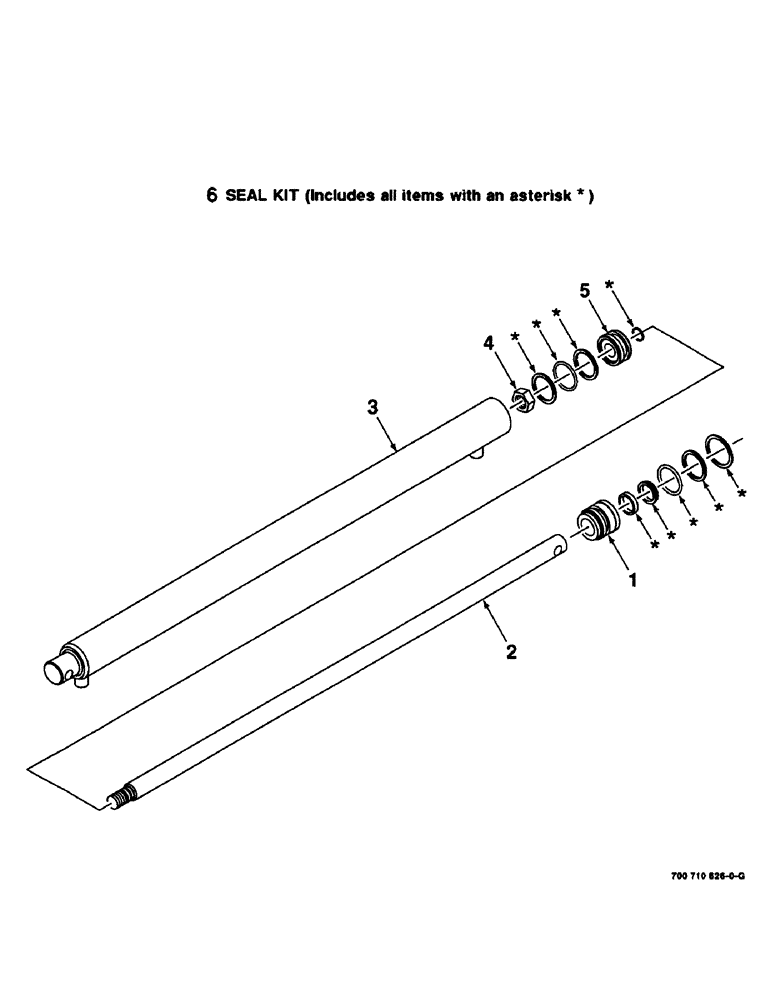

Схема запчастей Case IH 8465 - (8-26) - HYDRAULIC CYLINDER ASSEMBLY, TAILGATE, 700710626 HYDRAULIC CYL. COMPLETE,1-3/4" BORE X 32" STROKE (07) - HYDRAULICS
5
6
1
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700710626

CYLINDER

HYDRAULIC CYLINDER COMPLETE (1-3/4 inch bore x 32 inch stroke)

1шт.

1

700710841

GUIDE

1шт.

2

700710840

ROD

1шт.

3

700710843

BODY

- cylinder

1шт.

4

700707418

JAM NUT

7/8-14 HEX JAM NUT

1шт.

5

700710839

PISTON

1шт.

6

700710842

KIT

SEAL KIT

1шт.
