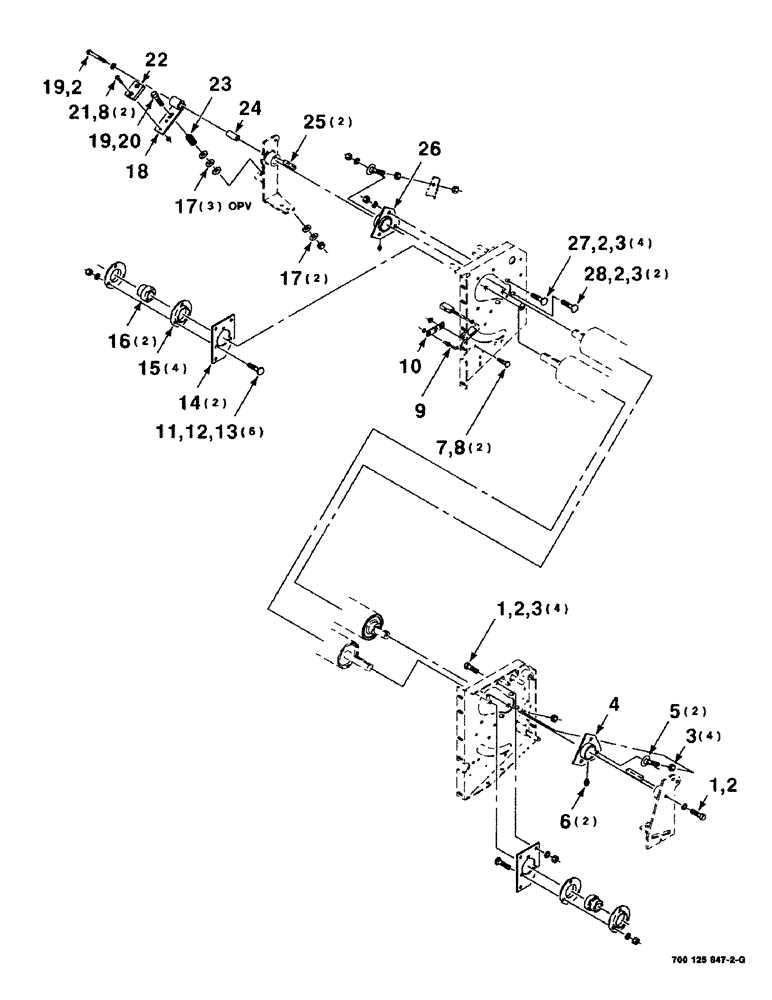

Запчасти Case IH 8460 (20) - MESH WRAP ROLLER ASSEMBLY, SERIAL NUMBER CFH0073001 THROUGH 0073010

1

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

5шт.

2

705038

CONTROL VALVE

3/8"

12шт.

3

704023

NUT,3/8"-16, G5

3/8-16 H

14шт.

4

700125909

SUPPORT

WA-LEFT

1шт.

5

296608

BOLT,3/8" - 16 x 2"

-EYE

2шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

7

7770159

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

2шт.

8

704221

NUT

1/4-20 HFSLN GR/F

4шт.

9

700119161

SWITCH

ASSEMBLY

1шт.

10

700125910

MOUNTING PARTS

MOUNT-SWITCH

1шт.

11

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

51/6-18 X 3/4 RHSNB

6шт.

12

705020

LOCK WASHER

5/16"

6шт.

13

704015

NUT,5/16"-18, G5

5/16-18 H

6шт.

14

700125720

PLATE

2шт.

15

51200380

FLANGE

4шт.

16

50302

SPHERICAL BEARING,25.4 mm ID x 52 mm OD x 30.96 mm

2шт.

17

700709603

WASHER,3/8"

3/8 WIDE PLAIN WASHER

5шт.

18

700125828

SUPPORT

WA-BRAKE

1шт.

19

702928

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8-16 X 2-3/4 C

2шт.

20

7704141

EXTENSION

3/8-16 HTLN GR/B

1шт.

21

700711167

SCREW

1/4-20 X 3/4 CRJPHMS GR 2

2шт.

22

700710930

PAD

-BRAKE

1шт.

23

58107

SPRING

-COMPRESSION

1шт.

24

700109003

BUSHING

1шт.

25

61077

KEY

1/4 X 1-1/4 KEY

2шт.

26

700125721

SUPPORT

WA-RIGHT

1шт.

27

700047

BOLT

3/8-16 X 1 RHSNB

4шт.

28

768036

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 X 1-1/2 RHSNB

2шт.
