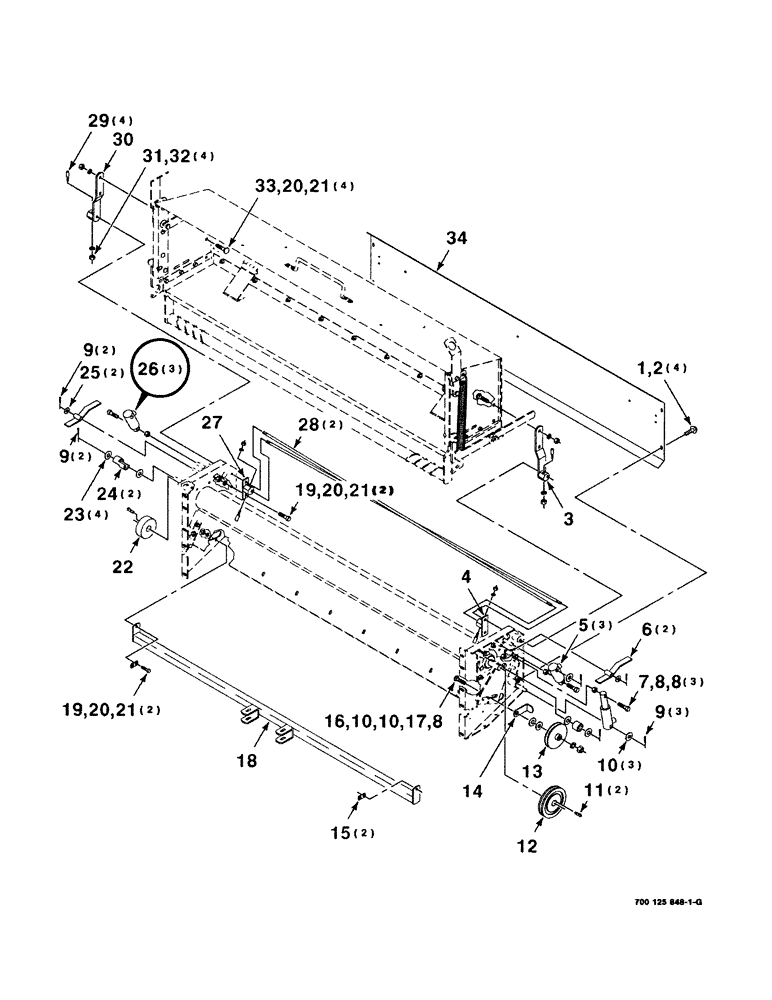

Запчасти Case IH 8460 (12) - MESH WRAP BOX AND ROLLER DRIVE ASSEMBLIES, MESH WRAP KIT HK50598, COMPLETE, INCLUDES PGS 21 THRU 33

1

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

4шт.

2

704239

FRONT AXLE

5/16-18 HFSLN GR/F

4шт.

3

700125752

HINGE

WA-LEFT

1шт.

4

700125756

ADAPTER

WA-LEFT

1шт.

5

700710874

CYLINDER

-HYDRAULIC

3шт.

6

700125750

LATCH

WA

2шт.

7

703512

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 X 2-1/4 C

3шт.

8

86516876

COVER

1/2-13 H

7шт.

9

62083

PIN

1/8 X 1 COTTER PIN

7шт.

10

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

5шт.

11

61622

BUCKET TOOTH KEY

1/4 X 1-1/2 GIB KEY

2шт.

12

700125843

SHEAVE

1шт.

13

54833

FRONT IDLER

IDLER-V

1шт.

14

700125855

GUIDE

-BELT

1шт.

15

700125912

PLATE

2шт.

16

7700248

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 RHSNB

1шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

18

700125796

SUPPORT

WA

1шт.

19

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

4шт.

20

705038

CONTROL VALVE

3/8"

8шт.

21

704023

NUT,3/8"-16, G5

3/8-16 H

8шт.

22

700125830

DRUM

-BRAKE

1шт.

23

NLS

NO LONGER SERVICED

5/8 HARDENED PLAIN WASHER

4шт.

24

700710931

BUSHING

2шт.

25

705533

WASHER

3/8 HARDENED PLAIN WASHER

2шт.

26

700710941

SEAL KIT

KIT-SEAL

3шт.

27

700125759

ADAPTER

WA-RIGHT

1шт.

28

700125915

SPRING

-TORSION

2шт.

29

700125760

WEDGE

4шт.

30

700125755

HINGE

WA-RIGHT

1шт.

31

705012

LOCK WASHER

1/4"

4шт.

32

704007

NUT,1/4"-20, G5

1/4-20 H

4шт.

33

700047

BOLT

3/8-16 X 1 RHSNB

4шт.

34

700125717

SHIELD

1шт.
