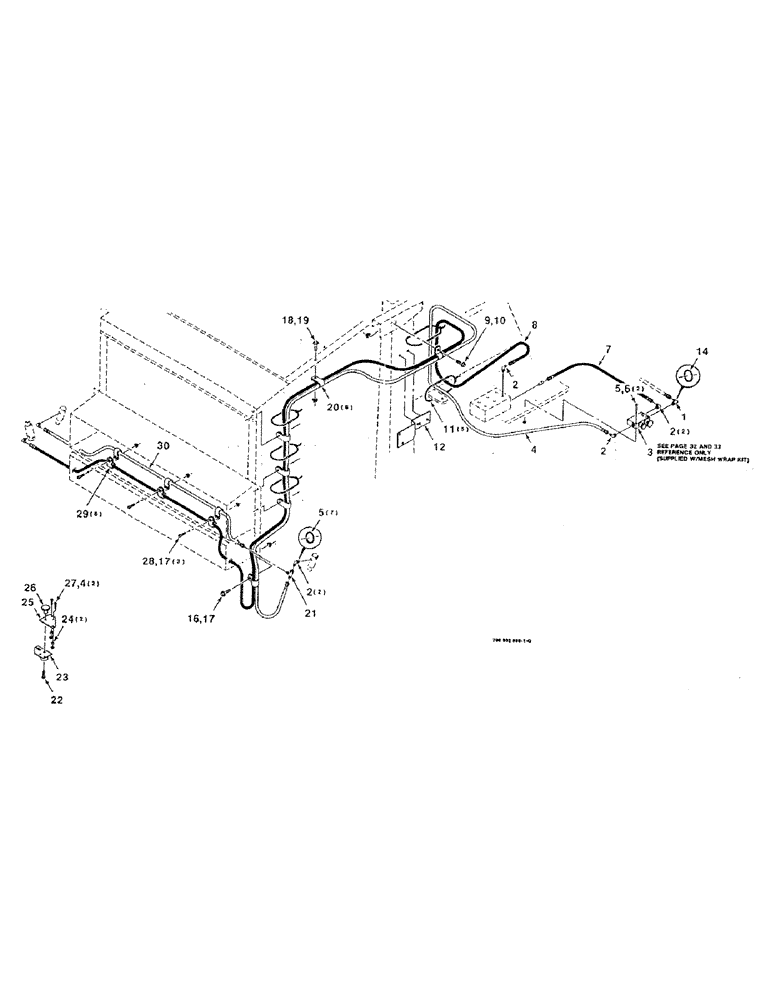

Запчасти Case IH 8460 (08) - MESH WRAP ADAPTER KIT, HK50596, SERIAL NUMBER CFH0073001 THROUGH 0073010

1

700710997

VALVE

-CONTROL

1шт.

2

7792500

ELBOW

90 DEGREE ELBOW (Includes Item 5)

7шт.

3

703140

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

1/4-20 X 1-3/4 C

2шт.

4

523282

SERRATED NUT,Flg, USR, 1/4"-20

1/4-20 HFSLN GR/F

4шт.

5

7040397

O-RING

12шт.

6

7046576

ADAPTER

-STRAIGHT, MALE

1шт.

7

700711345

VALVE

-NEEDLE

1шт.

8

7046154

ELBOW

90 DEGREE ELBOW

1шт.

9

700711008

HYDRAULIC HOSE,6.35 mm ID x 6600.00 mm, SAE 100R1

6.35 mm ID x 6600.00 mm, SAE 100R1

1шт.

10

700711007

HYDRAULIC HOSE,6.35 mm ID x 5400.00 mm, SAE 100R1

6.35 mm ID x 5400.00 mm, SAE 100R1

1шт.

11

700122569

SUPPORT

-SWITCH

1шт.

12

722470

MOUNTING CLIP

CABLE-TIE

5шт.

13

700701356

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR (Includes Item 5)

4шт.

14

700701796

FLEXIBLE HOSE

HOSE-HYDRAULIC

1шт.

15

700711082

HYDRAULIC HOSE,6.35 mm ID x 270.00 mm, SAE 100R1

6.35 mm ID x 270.00 mm, SAE 100R1

3шт.

16

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN GR/F

5шт.

18

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 X 1 HWHMS

1шт.

19

704247

NUT

3/8-16 HFSLN GR/F

1шт.

20

7898737

CLAMP

-HOSE

6шт.

21

700701355

3 WAY CONNECTION

TEE

1шт.

22

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 RHSNB

1шт.

23

700125072

PLATE

WA

1шт.

24

700125069

SPACER

2шт.

25

700125103

PLATE

1шт.

26

700707234

BUTTON

KNOB

1шт.

27

7703457

HYD CONNECTOR,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 C

2шт.

28

703579

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

5/16-18 X 1 C

3шт.

29

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

-HOSE

6шт.

30

700711009

HYDRAULIC HOSE,6.35 mm ID x 1850.00 mm, SAE 100R1

6.35 mm ID x 1850.00 mm, SAE 100R1

1шт.
