(32) - MESH WRAP HYDRAULIC CONTROL VALVE ASSEMBLY, SUPPLIED WITH MESH WRAP KIT, S.N. CFH0073011 AND LATER

Запчасти Case IH 8460 (32) - MESH WRAP HYDRAULIC CONTROL VALVE ASSEMBLY, SUPPLIED WITH MESH WRAP KIT, S.N. CFH0073011 AND LATER

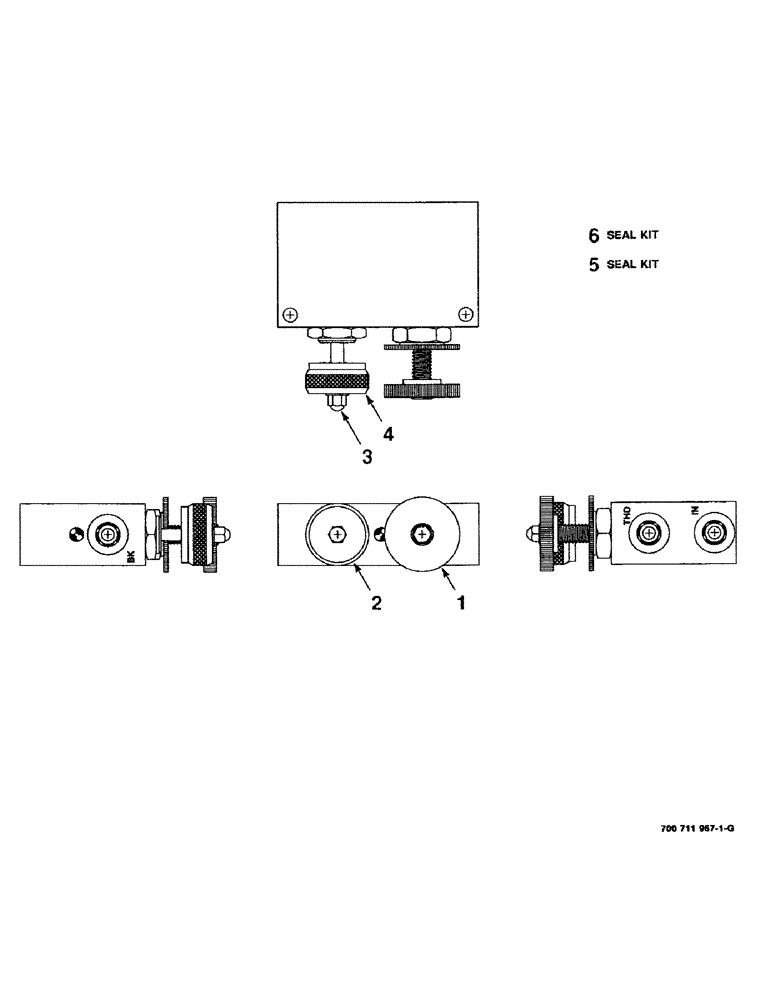

Схема запчастей Case IH 8460 - (32) - MESH WRAP HYDRAULIC CONTROL VALVE ASSEMBLY, SUPPLIED WITH MESH WRAP KIT, S.N. CFH0073011 AND LATER
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700707837

VALVE

-FLOW CONTROL

1шт.

2

700710998

VALVE

-MANUAL ROTARY

1шт.

3

700709818

NUT

#10-32 ACORN NUT

1шт.

4

700709819

KNOB

1шт.

5

700706152

SEAL KIT

KIT-SEAL

1шт.

6

700706154

SEAL KIT

KIT-SEAL

1шт.
