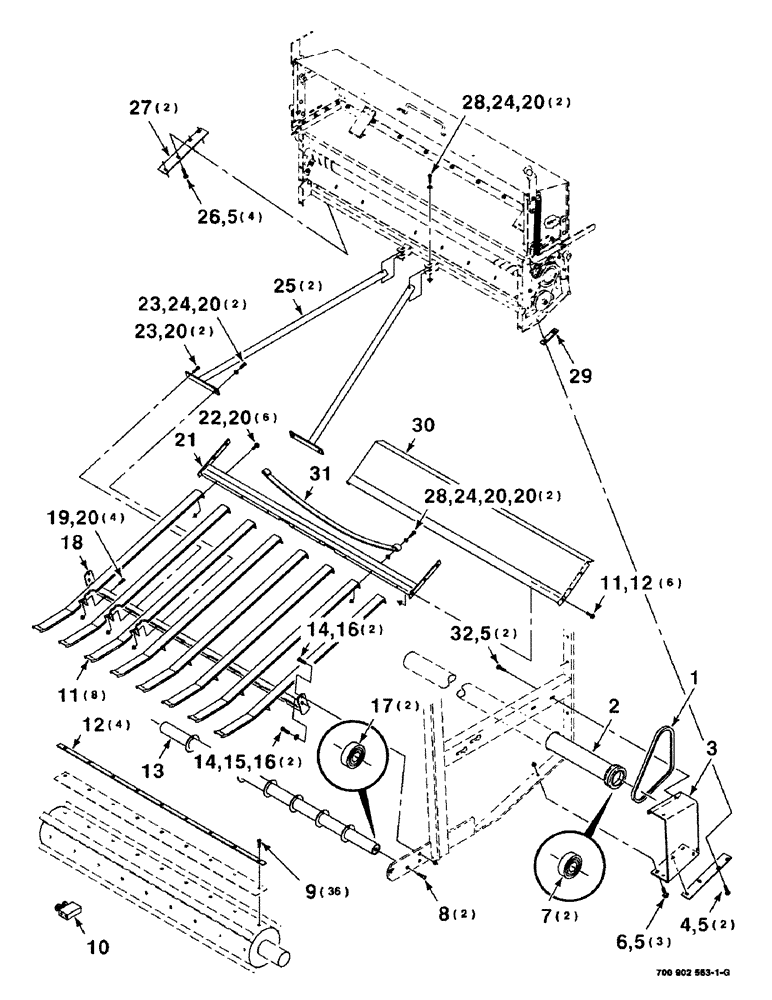

Запчасти Case IH 8460 (24) - MESH WRAP SHIELDS AND SLIDE ASSEMBLIES

1

700710922

V-BELT,1140.46 mm L

1шт.

2

700125851

ROLLER

ASM (Includes Item 7)

1шт.

3

700125782

SUPPORT

WA

1шт.

4

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 X 1-1/4 RHSNB

2шт.

5

704247

NUT

3/8-16 HFSLN GR/F

11шт.

6

7883408

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8-16 X 1-1/4 HFS GR8

3шт.

7

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

2шт.

8

771808

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1 1/4"

3/8-16 X 1-1/4 HSFCHCS

2шт.

9

51219667

LINK BLOCK

5/16-18 X 3/4 HSFCHCS

36шт.

10

700711967

VALVE

-CONTROL

1шт.

11

700125786

SLIDE

WA

8шт.

12

700122995

STRAP

4шт.

13

700125801

ROLLER

ASM (Includes Item 17)

1шт.

14

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 X 1-1/4 C

2шт.

16

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

17

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

BEARING

2шт.

18

700125790

SUPPORT

WA

1шт.

19

7703507

DECAL,Hex, 5/16" - 18 x 2", Gr 5

5/16-18 X 2 C

4шт.

20

704239

FRONT AXLE

5/16-18 HFSLN GR/F

20шт.

21

700125805

SUPPORT

WA

1шт.

22

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

6шт.

23

7771744

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 5

5/16-18 X 2-1/4 C

4шт.

24

705525

WASHER

5/16 HARDENED PLAIN WASHER

6шт.

25

700125793

SUPPORT

WA

2шт.

26

700047

BOLT

3/8-16 X 1 RHSNB

4шт.

27

700125905

PLATE

2шт.

28

7703945

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 X 2-1/2 C

4шт.

29

700125907

PLATE

1шт.

30

700125804

SHIELD

1шт.

31

700710880

SPRING

-LEAF

1шт.

32

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

2шт.
