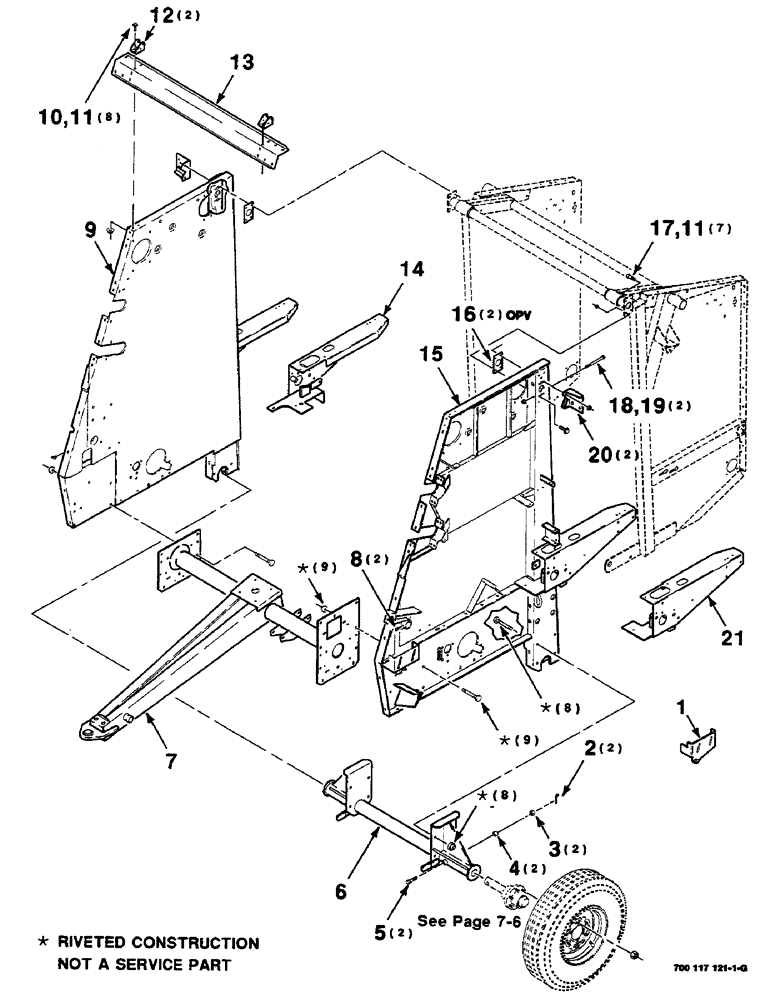

Запчасти Case IH 8460 (7-04) - MAINFRAME, TONGUE AND AXLE ASSEMBLIES (12) - MAIN FRAME

1

700114235

SUPPORT

- idler

1шт.

2

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

3

425-1210

SLOTTED NUT,Hex, 5/8"-11, G5

2шт.

4

300830

SPACER

2шт.

5

700114344

SCREW

- special

2шт.

6

700114285

AXLE

- WA

1шт.

7

700114302

TOW BAR

TONGUE WA (S.N. CFH0016501 thru CFH0057696)

1шт.

700125027

TOW BAR

TONGUE WA (S.N. CFH0057697 and later)

1шт.

8

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

9

700122782

KIT

SIDE WA - right, service kit

1шт.

10

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

8шт.

11

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

15шт.

12

700117098

CHANNEL

2шт.

13

700114349

SUPPORT

- front

1шт.

14

700114239

ARM

SUPPORT - right, weldment

1шт.

15

700122781

KIT

SIDE WA - left, service kit

1шт.

16

700118826

SHIM

2шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

7шт.

18

413-588

BOLT,Hex, 5/16" - 18 x 5-1/2", Gr 5

5/16-18 X 5-1/2 C

2шт.

19

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

20

700116214

SUPPORT

2шт.

21

700114238

ARM

SUPPORT - left, weldment

1шт.
