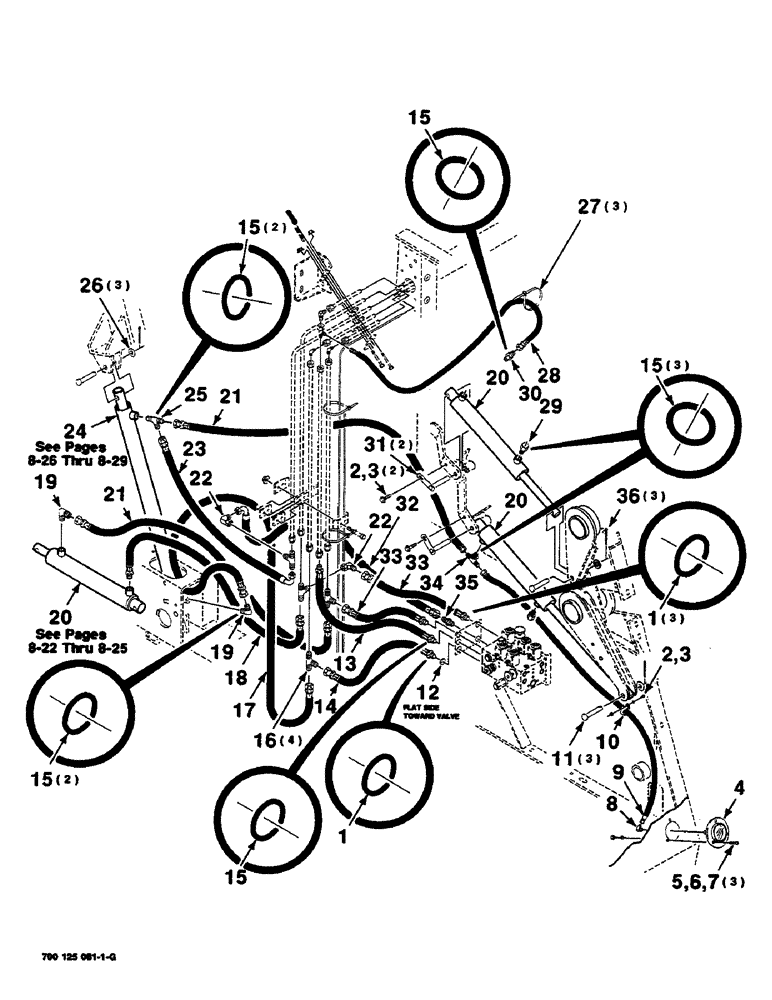

Запчасти Case IH 8460 (8-20) - HYDRAULIC ASSEMBLY, RIGHT (07) - HYDRAULICS

1

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

2

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

3шт.

3

231-5146

FLANGE NUT,3/8"-16

3шт.

4

700711782

GAUGE

1шт.

5

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

#6-32 X 1/2 CRPHMS

3шт.

6

492-11006

LOCK WASHER,#6

Washer, Lock, #6

3шт.

7

225-14106

NUT,#6-32

3шт.

8

218-513

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF

- 90 degrees

1шт.

9

812382C1

HYDRAULIC HOSE

HOSE - hydraulic

1шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

11

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

5/8 X 2-1/2 CLEVIS PIN

3шт.

12

700707872

ORIFICE

1шт.

13

700707399

HOSE

- hydraulic (Includes item 15)

1шт.

14

700707601

HOSE

- hydraulic (Includes item 1)

1шт.

15

738468

O-RING

9шт.

16

218-1575

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

4шт.

17

8742447

HOSE

- hydraulic

1шт.

18

700707276

HOSE

- hydraulic

1шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (Includes item 15)

2шт.

20

700707262

CYLINDER

- hydraulic (S.N. CFH0016501 thru CFH0058101)

3шт.

700712161

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 304.8mm Stroke

CYLINDER - hydraulic (S.N. CFH0058102 and later)

3шт.

21

700707386

HOSE

- hydraulic

2шт.

22

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

23

700707285

HOSE

- hydraulic

1шт.

24

700710626

CYLINDER

- hydraulic (CFH0016501 thru CFH0058101)

1шт.

700712159

CYLINDER ASSY.

CYLINDER - hydraulic (S.N. CFH0058102 and later)

1шт.

25

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

TEE, (Includes item 15) 9/16"-18, 37º x 9/16"-18, O-Ring Run

1шт.

26

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

3шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

28

8042715

HYDRAULIC HOSE,9.65 mm ID x 787.00 mm, SAE 100R1,SAE J517,SAE J343,SAE J516

9.65 mm ID x 787.00 mm, SAE 100R1,SAE J517,SAE J343,SAE J516

1шт.

29

700709959

BREATHER

(Includes item 15)

1шт.

30

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR (Incl. item 15)

1шт.

31

700118823

PIN

WA

2шт.

32

700707395

HOSE

- hydraulic

1шт.

33

700707394

HOSE

- hydraulic (Includes item 1)

2шт.

34

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes item 15)

1шт.

35

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR (Incl. item 1)

1шт.

36

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

3шт.
