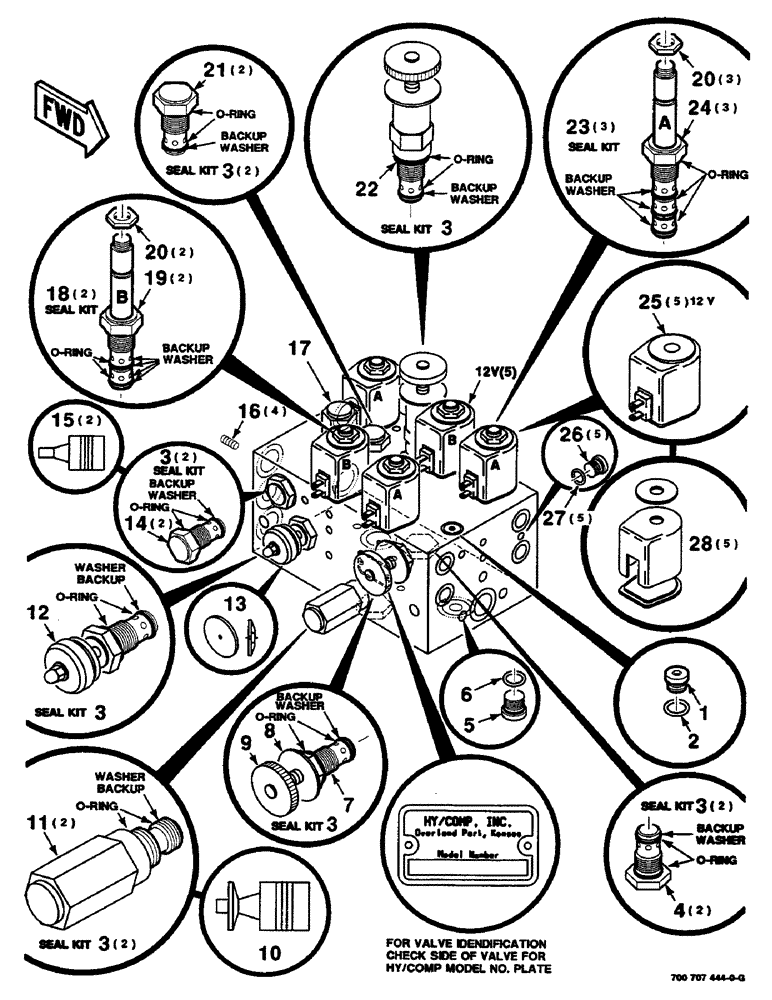

Запчасти Case IH 8460 (8-16) - HYDRAULIC CONTROL VALVE ASSEMBLY, AUTOMATIC, 700707444 HYDRAULIC CONTROL VALVE ASSEMBLY COMPLETE (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
700707444
VALVE
HYDRAULIC CONTROL VALVE COMPLETE
1шт.
1
700707835
PLUG
#4 SAE PLUG (Includes item 2)
1шт.
2
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
3
149942C1
SEAL KIT
O-RING AND SEAL REPAIR KIT
11шт.
4
700707831
VALVE
- check
2шт.
5
700706604
PLUG
- 8 SAE (Includes item 6)
1шт.
6
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
7
700707830
VALVE, CONTROL
VALVE - flow control
1шт.
700121500
KIT
VALVE - flow control, service kit (S.N. CFH0016501 thru CFH0016838)
1шт.
700709569
VALVE
- flow control (Use with orifice in threader) (S.N. CFH0016839 and later)
1шт.
8
700709818
NUT
1шт.
9
700709819
KNOB
1шт.
10
700710890
PISTON
- wing
1шт.
11
700706157
HYDRAULIC VALVE
VALVE - relief (2000 PSI)
2шт.
12
700706158
DRAINCOCK/TAP SUPPLY
VALVE - needle
1шт.
13
700709384
ORIFICE
(.02)
1шт.
14
700707833
VALVE, CHECK
VALVE - check, poppet (15 PSI spring)
2шт.
15
700710891
PISTON
- pilot
2шт.
16
221-850
PLUG,Hex Soc, 1/16"-27
- pipe 1/16 NPT
4шт.
17
700707827
VALVE, PRESSURE RELI
VALVE - relief (Knob adjustment) (Replaced with 700706157)
1шт.
700706157
HYDRAULIC VALVE
VALVE - relief
1шт.
18
700706152
SEAL KIT
O-RING AND SEAL REPAIR KIT
2шт.
19
700706148
CARTRIDGE
SOLENOID (2-Pos., 3-Way)
2шт.
20
700706151
NUT
HEX NUT
5шт.
21
700707832
VALVE PRESSURE RELIE
VALVE - check, ball (5 PSI spring)
2шт.
22
700707829
VALVE, PRESSURE RELI
VALVE - relief, knob Adj. (2000 PSI)
1шт.
23
700707215
SEAL KIT
O-RING AND SEAL REPAIR KIT
3шт.
24
700706610
CARTRIDGE
SOLENOID (2-Pos., 4-Way)
3шт.
25
700707825
COIL
(10V DC)
5шт.
700710176
COIL
(12V DC)
5шт.
26
218-5151
PLUG,Hex Hd, 5/16"-24 ORB
(#2 SAE) (Includes item 27)
5шт.
27
238-5010
O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro
-010, 70 Duro, .239" ID x .070" Thk
5шт.
28
700707826
REPAIR KIT
KIT - coil housing
5шт.
Выбрано товаров: 33
