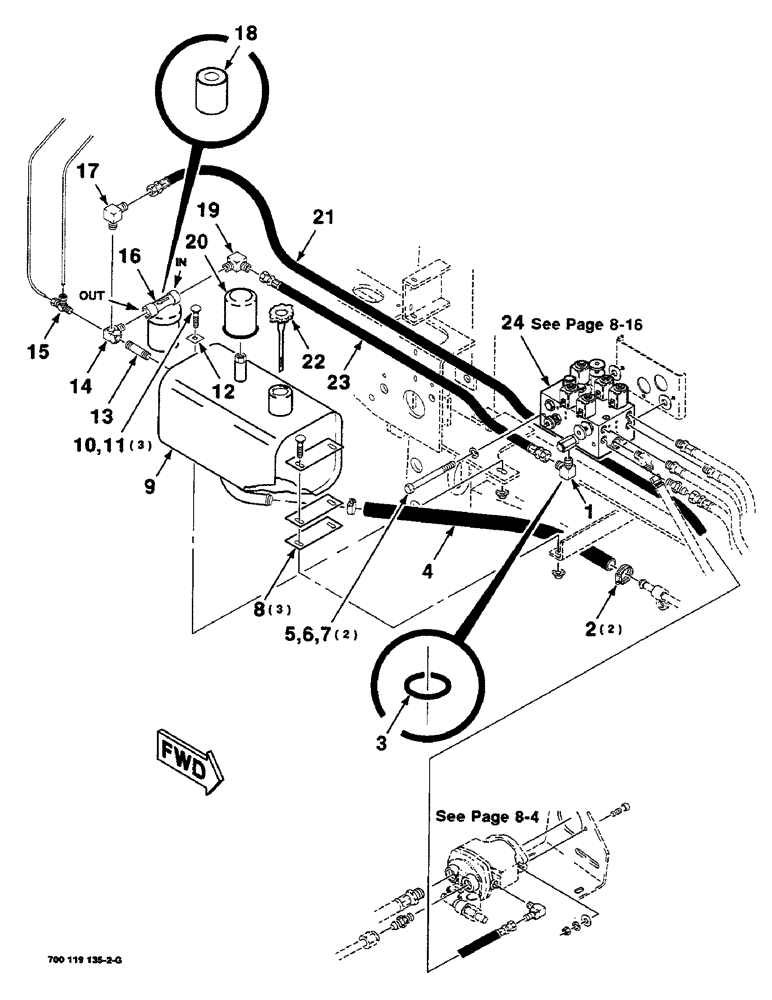

Запчасти Case IH 8460 (8-14) - HYDRAULIC ASSEMBLY, RESERVOIR TO VALVE (07) - HYDRAULICS

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degrees (Includes item 3)

1шт.

2

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, #20, 0.81/1.75 Type F Worm

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

7796782

HOSE

- hydraulic

1шт.

5

413-5104

BOLT,Hex, 5/16" - 18 x 6-1/2", Gr 5

5/16-18 X 6 C

2шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

8

6525877

CLAMP

STRAP

3шт.

9

700708071

RESERVOIR ASSY.

RESERVOIR - oil

1шт.

10

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

11

231-5146

FLANGE NUT,3/8"-16

3шт.

12

700116124

LUG

1шт.

13

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - pipe

1шт.

14

700119134

ELBOW

- 90 degrees

1шт.

15

700713394

TEE

- male run

1шт.

16

742643

FILTER

(Includes item 18)

1шт.

17

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degrees

1шт.

18

201021C1

ELEMENT

- filter

1шт.

19

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degrees

1шт.

20

7825516

FILTER

1шт.

21

195504C2

HYDRAULIC HOSE

HOSE - hydraulic

1шт.

22

700708076

FILLER CAP

CAP - filler

1шт.

23

895482

HYDRAULIC HOSE,12.70 mm ID x 431.80 mm, SAE 30R2, SAE J517, SAE J516, SAE J343

12.70 mm ID x 431.80 mm, SAE 30R2, SAE J517, SAE J516, SAE J343

1шт.

24

700707444

VALVE

ASSEMBLY - automatic

1шт.
