(8-12) - HYDRAULIC CYLINDER ASSEMBLY, CLUTCH, 700711910 HYDRAULIC CYLINDER COMPLETE, 2" BORE X 4" STROKE

Запчасти Case IH 8460 (8-12) - HYDRAULIC CYLINDER ASSEMBLY, CLUTCH, 700711910 HYDRAULIC CYLINDER COMPLETE, 2" BORE X 4" STROKE (07) - HYDRAULICS

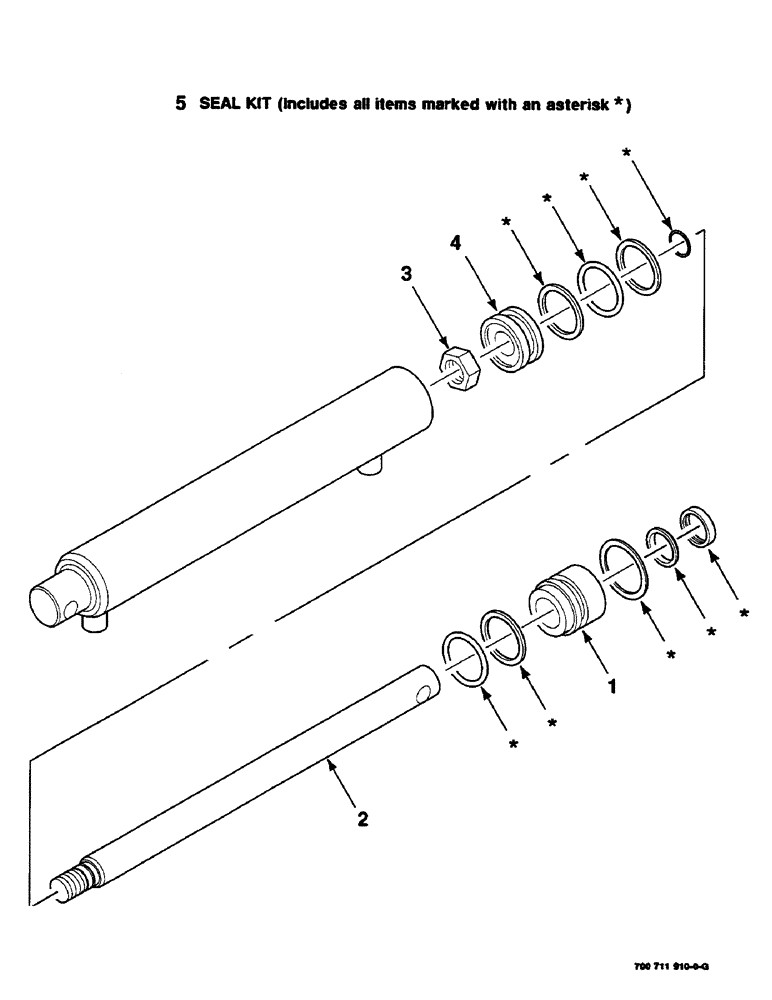

Схема запчастей Case IH 8460 - (8-12) - HYDRAULIC CYLINDER ASSEMBLY, CLUTCH, 700711910 HYDRAULIC CYLINDER COMPLETE, 2" BORE X 4" STROKE (07) - HYDRAULICS
5
2
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700711910

CYLINDER ASSY.

HYDRAULIC CYLINDER COMPLETE (2 Inch bore x 4 inch stroke)

1шт.

1

700711112

GUIDE

1шт.

2

700711955

PISTON ROD

ROD

1шт.

3

700707418

JAM NUT

7/8-14 HEX JAM NUT

1шт.

4

700707419

PISTON

1шт.

5

700711114

SEAL KIT

SEAL KIT

1шт.
