(8-06) - HYDRAULIC CYLINDER ASSEMBLY, THREADER, 700709416 HYDRAULIC CYLINDER COMPLETE, 2" BORE X 8" STROKE

Запчасти Case IH 8460 (8-06) - HYDRAULIC CYLINDER ASSEMBLY, THREADER, 700709416 HYDRAULIC CYLINDER COMPLETE, 2" BORE X 8" STROKE (07) - HYDRAULICS

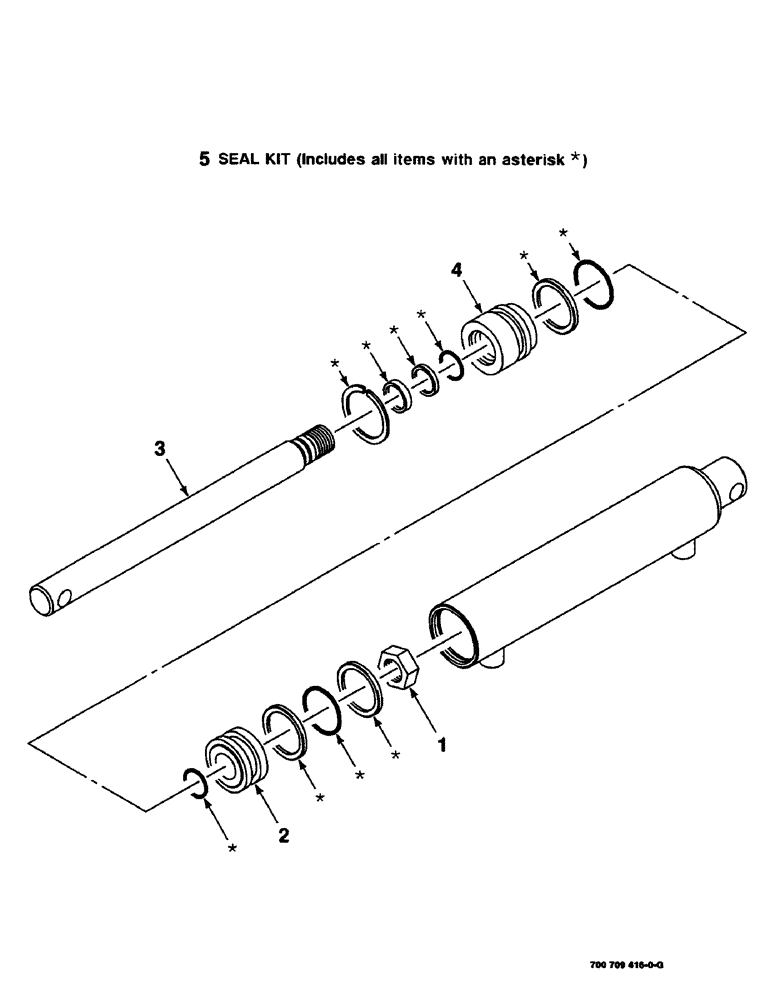

Схема запчастей Case IH 8460 - (8-06) - HYDRAULIC CYLINDER ASSEMBLY, THREADER, 700709416 HYDRAULIC CYLINDER COMPLETE, 2" BORE X 8" STROKE (07) - HYDRAULICS
5
1
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700709416

CYLINDER

HYDRAULIC CYLINDER COMPLETE (2 Inch bore x 8 inch stroke)

1шт.

1

700707418

JAM NUT

7/8-14 JAM NUT

1шт.

2

700707419

PISTON

1шт.

3

700709465

ROD

- piston

1шт.

4

700707420

GUIDE

- rod

1шт.

5

700708736

SEAL KIT

KIT

1шт.

Выбрано товаров: 6
