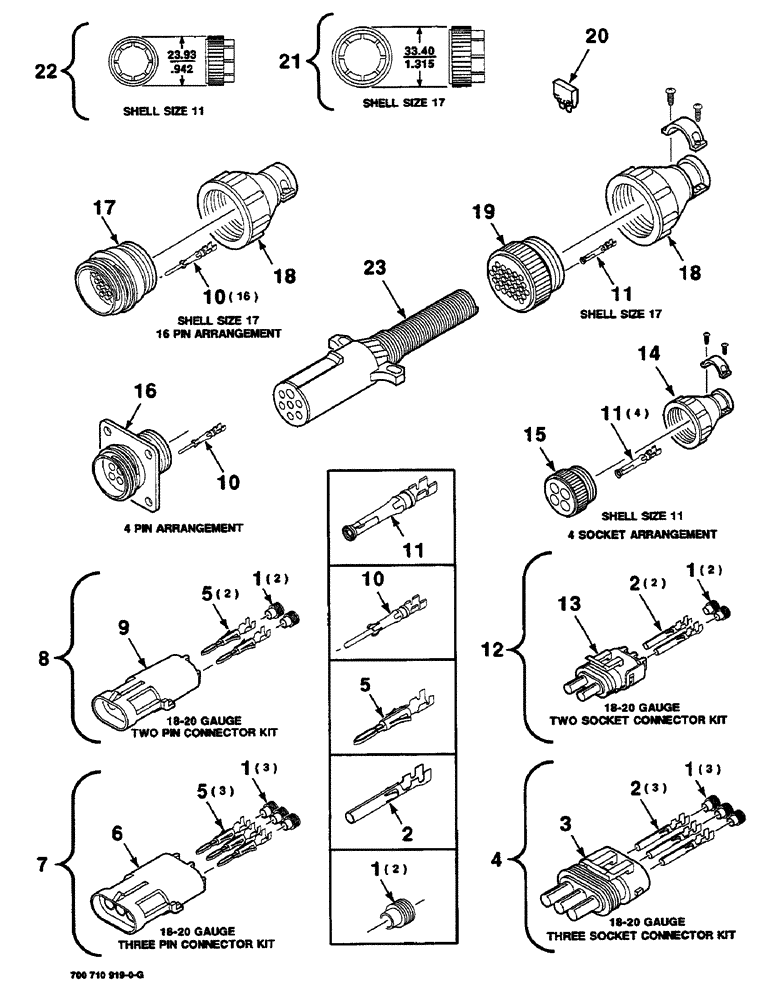

Запчасти Case IH 8460 (4-14) - ELECTRICAL HARNESS SERVICE PARTS (06) - ELECTRICAL

1

700706400

PLUG

SEAL (18-20 Gauge)

1шт.

2

700708760

ELEC. TERMINAL PIN,18 - 20 SAE

SOCKET - female (18-20 Gauge)

1шт.

3

245484C1

ELEC CONNECTOR,3 Pin

CONNECTOR - tower, 3 socket, female

1шт.

4

700707001

REPAIR KIT

KIT - harness repair, 3 socket, female, (Includes items 1, 2 and 3)

1шт.

5

700706401

TERMINAL

PIN - male (18-20 Gauge)

1шт.

6

700706413

ELEC CONNECTOR

CONNECTOR - shroud, 3 pin, male

1шт.

7

700718599

KIT

- harness repair, shroud, 3 pin, male (Includes items 1, 5 and 6)

1шт.

8

700708753

REPAIR KIT

KIT - harness repair, 2 pin, male (Includes items 1, 5 and 9)

1шт.

9

700706399

ELEC CONNECTOR,14 - 20 SAE

CONNECTOR - shroud, 2 pin, male

1шт.

10

700708757

ELEC. TERMINAL PIN,18 - 16 SAE

PIN - type 3, male (16-18 Gauge)

1шт.

11

700708758

TERMINAL

SOCKET - type 3, female, (16-18 Gauge)

1шт.

12

700706999

REPAIR KIT

KIT - harness repair, 2 socket, female, 18-20 gauge (Includes items 1, 2 and 13)

1шт.

13

245482C1

ELEC CONNECTOR,2 Pin

CONNECTOR - tower, 2 socket, female

1шт.

14

700709233

CLAMP

(Shell size 11)

1шт.

15

700709232

POWER SOCKET

RECEPTACLE - 4 socket, female

1шт.

16

700707757

CONTAINER

RECEPTACLE - square flange, male, (11-4 Arrangement)

1шт.

17

700708754

CONTAINER

RECEPTACLE

1шт.

18

225153C1

CONTACT HOUSING

CLAMP - cable

1шт.

19

225171C1

ELEC CONNECTOR,Female, 16 Pin

PLUG

1шт.

20

A149796

FUSE

- 3 AMP

1шт.

21

1301191C1

CONNECTION

RING - coupling (Shell size 17)

1шт.

22

60-6126T2

CONNECTION

RING - coupling (Shell size 11)

1шт.

23

700715341

PLUG

- 7 pin domestic

1шт.
