Запчасти Case IH 8460 (4-06) - ELECTRICAL ASSEMBLY, REAR UPPER (06) - ELECTRICAL

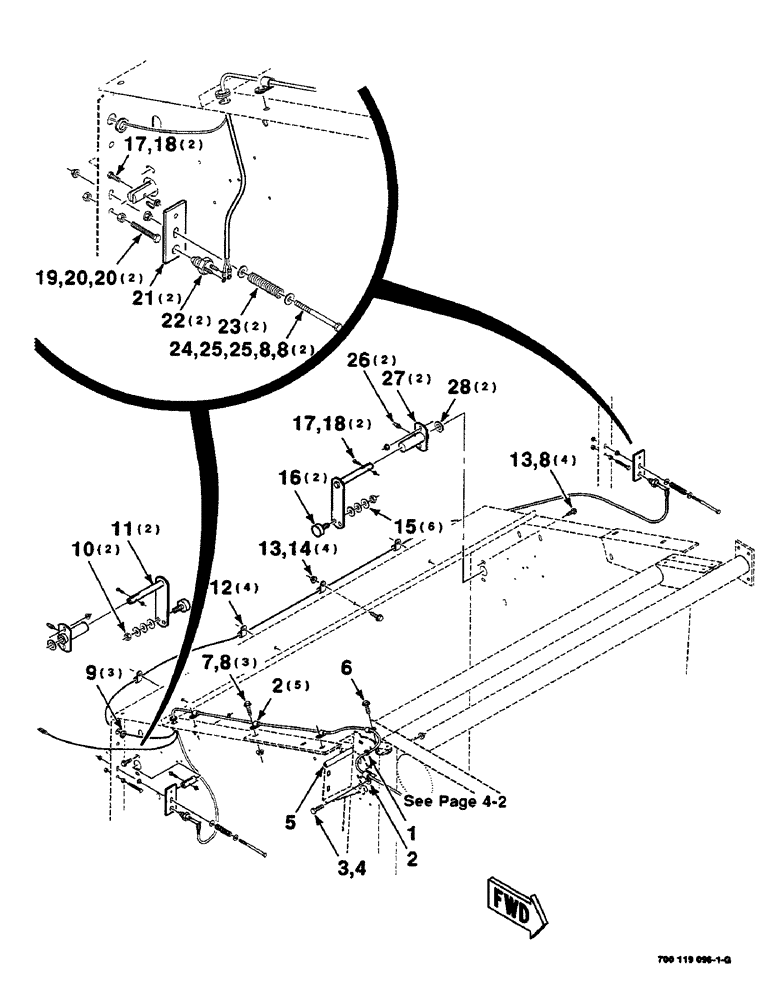

Схема запчастей Case IH 8460 - (4-06) - ELECTRICAL ASSEMBLY, REAR UPPER (06) - ELECTRICAL
8
2
1
8
28
2
25
7
24
19
25
12
26
20
15
13
18
6
17
8
11
17
4
20
22
3
13
27
10
16
14
5
23
18
8
21
9

Артикул

Название

Примечание

Количество

1

700708340

GROMMET

1шт.

2

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

6шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

5

700120657

ORNAMENTAL STRIP

GROMMET

1шт.

6

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

1шт.

7

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

3шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

11шт.

9

7827983

GROMMET

3шт.

10

702700045

LOCK NUT

- spiralock

2шт.

11

700116156

CRANK

WA

2шт.

12

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

4шт.

13

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

8шт.

14

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

4шт.

15

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

6шт.

16

700705612

CAM FOLLOWER

BEARING - cam

2шт.

17

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

4шт.

18

230-4214

LOCK NUT,1/4"-20, GA

1/4-20 HCLN GR/B

4шт.

19

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

2шт.

20

425-106

NUT,3/8"-16, Cl 5

4шт.

21

700116155

PLATE

2шт.

22

8025637

SWITCH

2шт.

23

7058266

SPRING

2шт.

24

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

2шт.

25

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

4шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

27

700116140

SUPPORT

WA

2шт.

28

52183

BUSHING

3/4 X 18 GAUGE NRMB

2шт.

Выбрано товаров: 28
