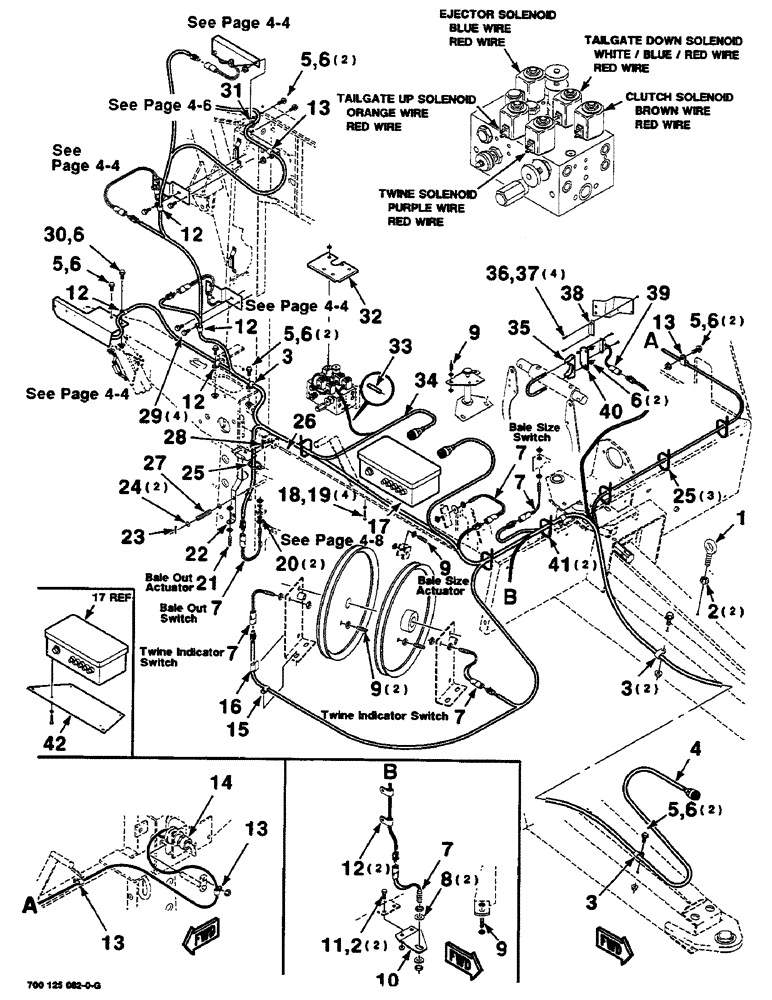

Запчасти Case IH 8460 (4-02) - ELECTRICAL ASSEMBLY, FRONT (06) - ELECTRICAL

1

866061

EYEBOLT

EYE BOLT

1шт.

2

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

3

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- line 1"

4шт.

4

700710919

HARNESS

- wire

1шт.

5

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

9шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

12шт.

7

700119161

SWITCH

SENSOR "A"

6шт.

8

700710190

WASHER

3/8 NPW STAINLESS STEEL

2шт.

9

700710211

ACTUATOR

5шт.

10

700122969

PLATE

1шт.

11

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

12

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

6шт.

13

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

4шт.

14

700707326

SWITCH

1шт.

15

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

- line, 3/4"

1шт.

16

700710813

CLIP

- terminal

1шт.

17

700710920

CONTROL

BOX ASSEMBLY

1шт.

18

700711230

#10-32 X 3/4 CRPHMS

4шт.

19

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

21

700707354

CONNECTION,ELECTRIC

ACTUATOR

1шт.

22

700116130

SUPPORT

WA - switch (S.N. CFH0016501 thru CFH0057048)

1шт.

700119957

SUPPORT

WA - switch (S.N. CFH0057049 and later)

1шт.

23

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

24

495-21044

WASHER,3/8"

2шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

26

Q657

HEADED PIN,9.53mm OD x 69.85mm L

3/8 X 2-3/4 CLEVIS PIN

1шт.

27

700707978

SPRING

- compression

1шт.

28

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

29

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

4шт.

30

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

1шт.

31

700708340

GROMMET

1шт.

32

700122807

COVER

1шт.

33

A149796

FUSE

- 3 AMP

1шт.

34

700708763

HARNESS

- wire, rear

1шт.

35

A135474

CLAMP

1шт.

36

700710188

SCREW

#6-32 X 3/4 CRPHMS

4шт.

37

700710189

LOCK NUT

#6-32 LHSN

4шт.

38

700709996

SWITCH

MAGNET

1шт.

39

700710208

ROTARY SWITCH

SWITCH N.O.

1шт.

40

700122551

MOUNTING PARTS

SUPPORT - switch

1шт.

41

529070

CABLE TIE,368.3mm L

TIE

2шт.

42

700125147

PLATE

- adapter

1шт.
