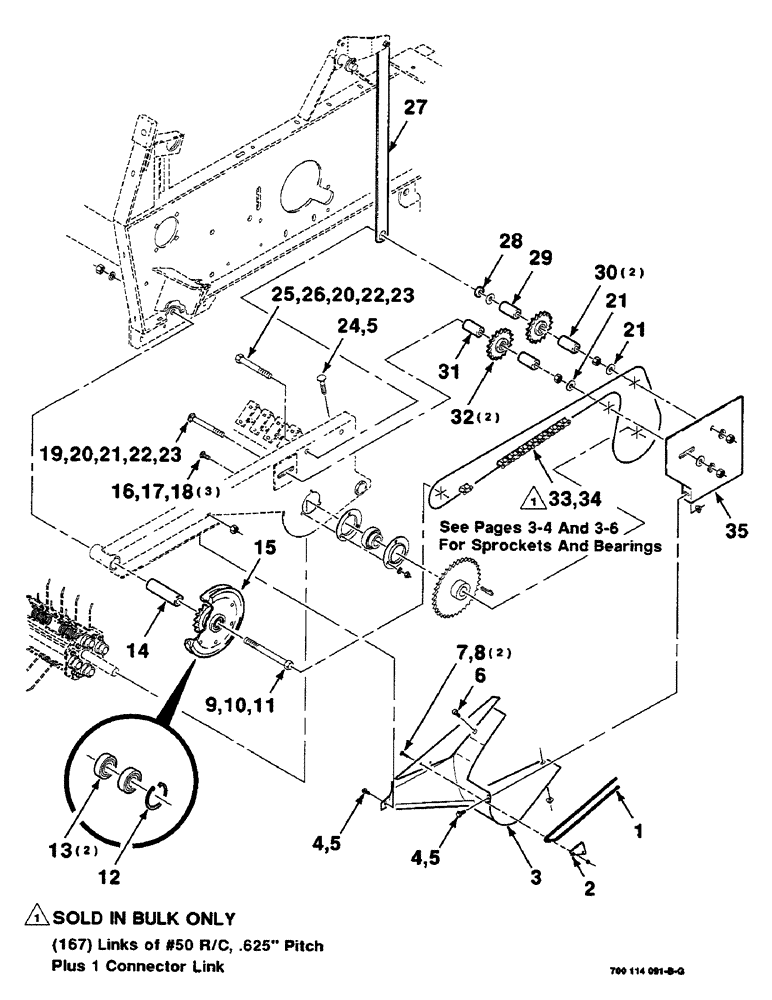

Запчасти Case IH 8460 (3-10) - PICKUP DRIVE ASSEMBLY, LEFT Pickup

1

700710929

SHIELD

- hay

1шт.

2

700125150

RETAINER

- left

1шт.

3

700114135

DEFLECTOR

WA - left

1шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

3шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

1шт.

7

434-416

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

1/4-20 X 1 RHSNB

2шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

9

414-12128

BOLT,Hex, 3/4" - 16 x 8", Gr 5

3/4-10 X 8 C

1шт.

10

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

11

425-1012

NUT,3/4"-10, G5

1шт.

12

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, 1.75", Int, #175

1шт.

13

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

BEARING

2шт.

14

700114171

TUBE,38.1 mm OD, 135.5 mm Length

- pickup, pivot

1шт.

15

700114166

PULLEY

SHEAVE ASSEMBLY (Includes items 12 and 13)

1шт.

16

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

17

492-11038

LOCK WASHER,3/8"

3шт.

18

425-106

NUT,3/8"-16, Cl 5

3шт.

19

7870603

BOLT,Sq Nk, 5/8" - 11 x 5 1/2", Gr 5

5/8-11 X 5-1/2 RHSNB

1шт.

20

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 HEX JAM NUT

2шт.

21

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

3шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

23

425-1010

NUT,5/8"-11, G5

2шт.

24

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

25

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

5/8-11 X 5-1/2 C

1шт.

26

495-21069

WASHER,5/8"

5/8 WIDE PLAIN WASHER

1шт.

27

700114170

STRAP

1шт.

28

378521

SPACER

1шт.

29

6156871

SPACER

1шт.

30

700114929

TUBE,31.75 mm OD, 41 mm Length

SPACER

2шт.

31

6610844

SPACER

1шт.

32

211623C91

SPROCKET

- idler, 17 tooth

2шт.

33

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller, #50 (10 Foot bulk)

1шт.

34

241-1315

LINK, CONNECTING

LINK - connector, #50

1шт.

35

700114164

SHIELD

- pickup, drive

1шт.
