(3-04) - PICKUP ASSEMBLY, WITH HEX SHAFT ONLY, SERIAL NUMBER CFH0016501 THROUGH CFH0057722

Запчасти Case IH 8460 (3-04) - PICKUP ASSEMBLY, WITH HEX SHAFT ONLY, SERIAL NUMBER CFH0016501 THROUGH CFH0057722 Pickup

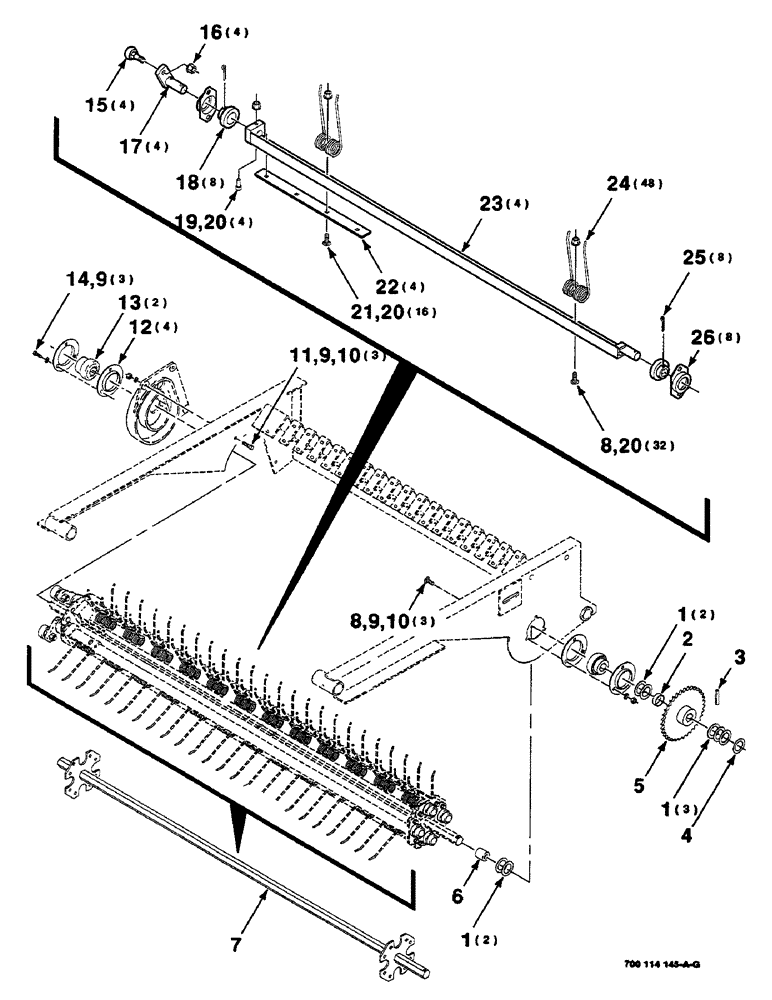

Схема запчастей Case IH 8460 - (3-04) - PICKUP ASSEMBLY, WITH HEX SHAFT ONLY, SERIAL NUMBER CFH0016501 THROUGH CFH0057722 Pickup
20
5
9
26
2
1
16
13
21
1
23
8
24
20
1
9
4
19
10
20
17
8
22
3
7
12
18
14
6
15
10
11
9
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

52282

BUSHING

1-1/2 X 14 GAUGE NRMB

7шт.

2

395871

SPACER

1шт.

3

20767R1

PIN,3/8" x 2 1/4", Coiled

3/8" x 2 1/4", Coiled

1шт.

4

52712

BUSHING

1-1/2 X 18 GAUGE NRMB

1шт.

5

700117122

SPROCKET ASSY.

SPROCKET 50B35 TOOTH

1шт.

6

700114174

SPACER

1шт.

7

700114148

ROTOR

WA

1шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

35шт.

9

492-11038

LOCK WASHER,3/8"

9шт.

10

425-106

NUT,3/8"-16, Cl 5

6шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

12

617863R1

FLANGED BEARING

- bearing

4шт.

13

713834

BUSHING

2шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

15

700705612

CAM FOLLOWER

BEARING - cam, follower

4шт.

16

702700045

LOCK NUT

1/2-20 SPIRALOCK

4шт.

17

700108618

ARM

CRANK WA

4шт.

18

710392

BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm

BEARING - cylindrical

8шт.

19

61-33836

HEX SOC SCREW,3/8 - 16 x 2-1/4"

3/8-16 X 2-1/4 HSHCS SPL

4шт.

20

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

52шт.

21

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

16шт.

22

700125083

STRAP

4шт.

23

700119965

ANGLE BAR

ANGLE WA

4шт.

24

700709760

TINE

TINE - double

48шт.

25

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

8шт.

26

700108622

FLANGED BEARING

FLANGE - bearing

8шт.
