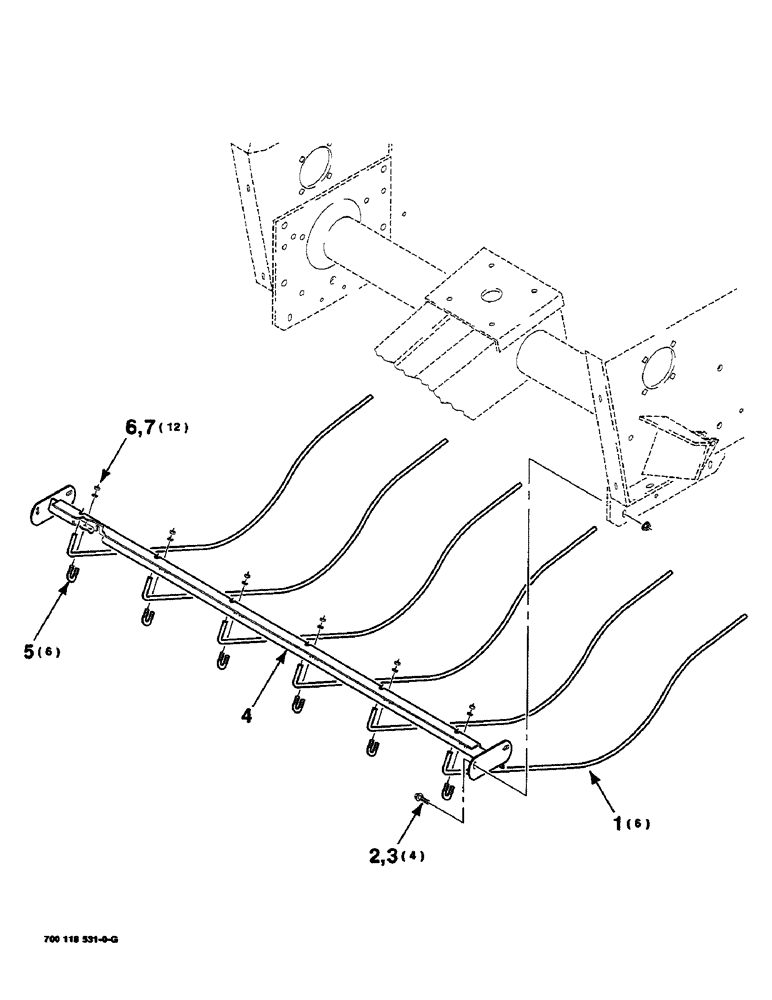

Запчасти Case IH 8460 (3-02) - WINDGUARD ASSEMBLY Pickup

1

700707443

ROD

- windguard

6шт.

700712197

ROD

- windguard

6шт.

2

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

700117118

SUPPORT

WA

1шт.

5

700707707

BOLT,U, 5/16" - 18 x 1.181"

U-BOLT

6шт.

6

425-105

NUT,5/16"-18, G5

12шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.
