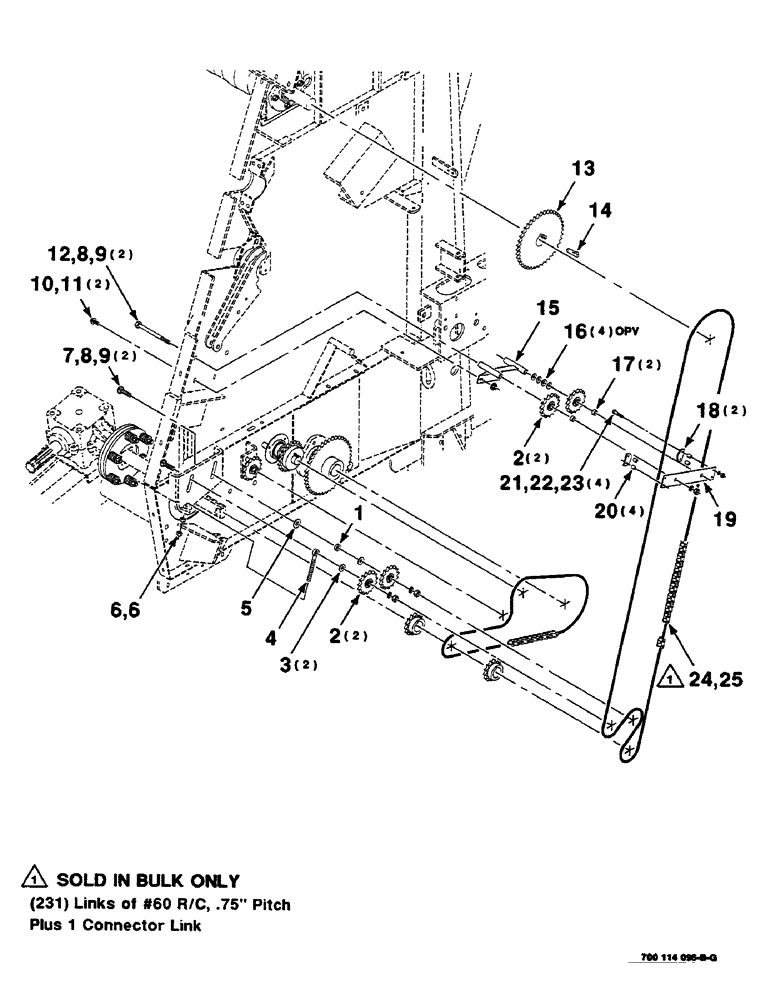

Запчасти Case IH 8460 (2-18) - ROLLER DRIVE ASSEMBLY, UPPER Driveline

1

6229256

SPACER

1шт.

2

541857R92

SPROCKET,15T

- idler, 15 tooth

4шт.

3

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

4

700119665

BOLT

BOLT WA - draw

1шт.

5

705566

WASHER

3/4 HARDENED PLAIN WASHER

1шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

7

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8-11 X 2-1/2 RHSNB

2шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

425-1010

NUT,5/8"-11, G5

4шт.

10

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

11

231-5146

FLANGE NUT,3/8"-16

2шт.

12

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

5/8-11 X 8 C

2шт.

13

6867659

SPROCKET ASSY.

SPROCKET - 60B40 tooth

1шт.

14

861088

BUCKET TOOTH KEY

1/2 X 2 GIB KEY

1шт.

15

700116054

SUPPORT

- idler

1шт.

16

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

5/8 X 18 GAUGE NRMB

4шт.

17

6529705

BUSHING

SPACER

2шт.

18

700116041

GUIDE

2шт.

19

700116044

SUPPORT

1шт.

20

6827794

SPACER

4шт.

21

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

23

425-105

NUT,5/16"-18, G5

4шт.

24

611362R91

CHAIN (AG)

CHAIN - roller, #60 (10 Foot bulk)

1шт.

25

241-1316

LINK,19.05mm Pitch

LINK - connector, #60 (W/Spring clip)

1шт.
