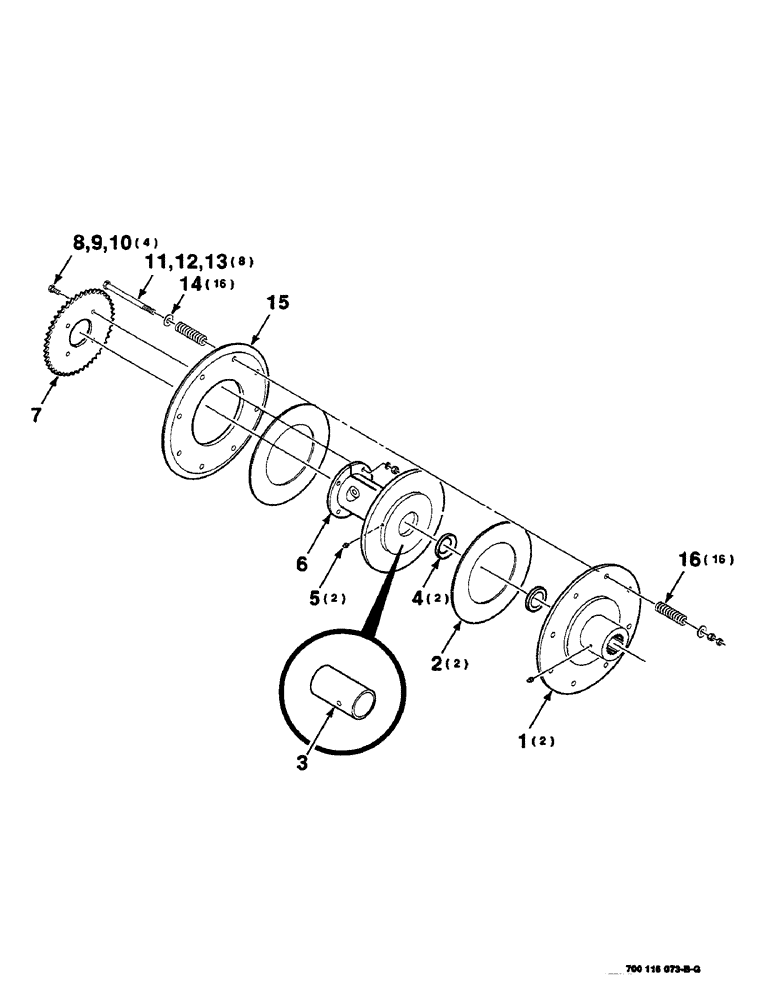

Запчасти Case IH 8460 (2-10) - CLUTCH ASSEMBLY, DRIVE SHAFT, SERIAL NUMBER CFH0016839 THROUGH CFH0057696 Driveline

1

700116081

DISC

- pressure

2шт.

700125678

DISC

WA - clutch

1шт.

2

700710946

CLUTCH PLATE

DISC - friction

2шт.

3

700709417

BRONZE BUSHING,34.95 mm ID x 41.351 mm OD x 44.45 mm

BEARING - bronze

1шт.

4

700708327

SEAL

2шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

6

700119136

FLANGE

WA (Includes item 3) (Superseded by 700125041 and 700711087)

1шт.

700125041

FLANGE

HUB (Includes item 3)

1шт.

7

700116189

SPROCKET ASSY.

SPROCKET - 40A46 tooth

1шт.

700128329

SPROCKET ASSY.

SPROCKET - 40A46 tooth

1шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

425-105

NUT,5/16"-18, G5

4шт.

11

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

8шт.

12

425-106

NUT,3/8"-16, Cl 5

8шт.

13

425-146

JAM NUT,3/8" - 16, Gr 5

3/8-16 HEX JAM NUT GR2

8шт.

14

495-21044

WASHER,3/8"

16шт.

15

700116075

DISC

PLATE - clutch

1шт.

700125677

DISC

PLATE - clutch

1шт.

16

58107

SPRING

- compression

16шт.
