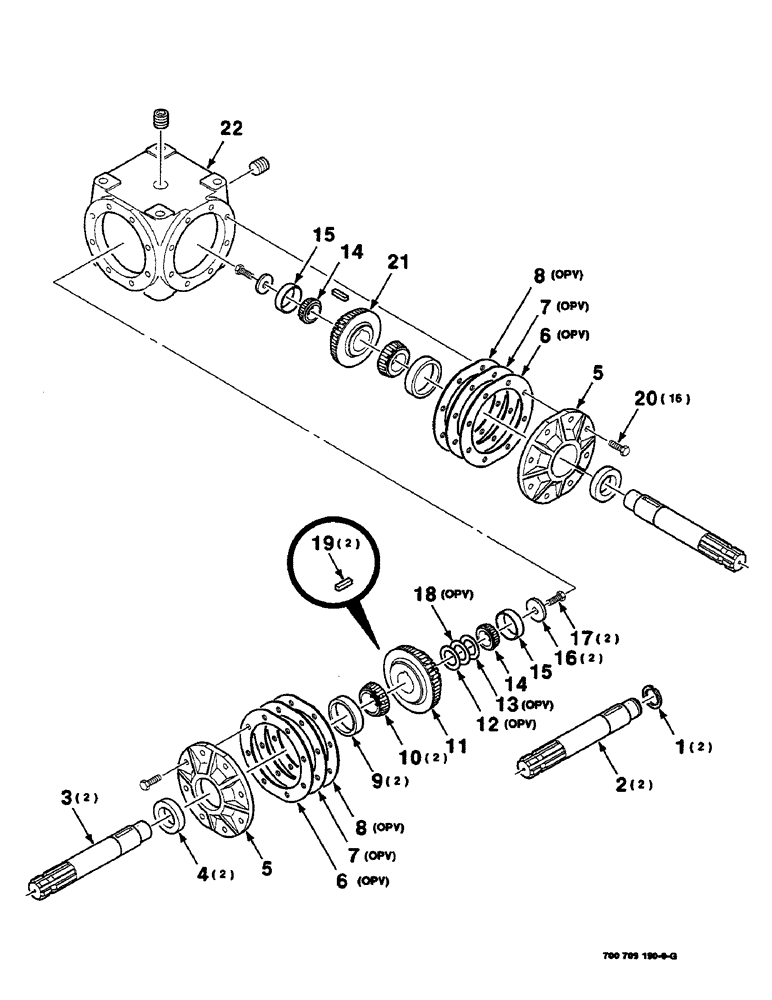

Запчасти Case IH 8460 (2-08) - GEARBOX ASSEMBLY, 700709190 GEARBOX ASSEMBLY COMPLETE Driveline

700709190

GEARBOX ASSY

GEARBOX ASSEMBLY - complete

1шт.

1

700712180

RING, SNAP

RING - retaining

2шт.

2

700712179

SHAFT

2шт.

3

700709400

SHAFT

(Superseded by 700712179 and 700712180)

2шт.

700712179

SHAFT

2шт.

4

H755694

SEAL ASSY.

SEAL - oil

2шт.

5

700709192

CAP

ASSEMBLY (Includes items 4 and 9)

2шт.

6

806950

GASKET

- shim (.003)

2шт.

7

806943

GASKET

- shim (.005)

2шт.

8

806935

GASKET

- shim (.015)

2шт.

9

131312C1

BEARING CUP

BEARING - cup

2шт.

10

871244R1

ROLLER BEARING

BEARING - cone

2шт.

11

700711939

GEAR

1шт.

12

700711935

SHIM

- (.010)

1шт.

13

700711936

SHIM

- (.005)

1шт.

14

800334

ROLLER BEARING,29.38 mm ID x 25.433 mm

BEARING - cone

2шт.

15

13447D

BEARING

CUP - bearing

2шт.

13447D

BEARING

CUP - bearing

2шт.

16

700709419

WASHER

- special

2шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

18

800268

SHIM

- (.002)

1шт.

19

700709193

KEY

- special

2шт.

20

800417

SCREW

3/8-16 X 1-1/4 C

16шт.

21

800359

GEAR

1шт.

22

700709191

BOX

HOUSING ASSEMBLY (Includes item 15)

1шт.
