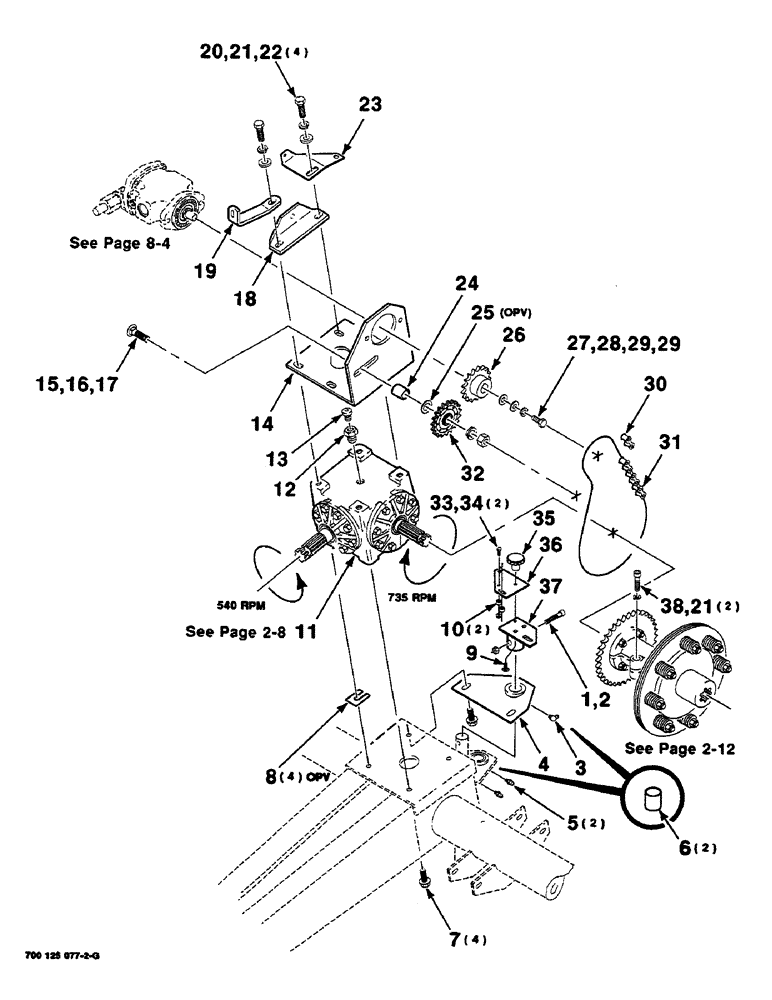

Запчасти Case IH 8460 (2-06) - PUMP DRIVE AND CONTROL LINKAGE ASSEMBLY Driveline

1

61-33832

HEX SOC SCREW,3/8 - 16 x 2"

3/8-16 X 2 HSHCS SPL

1шт.

2

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

1шт.

3

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

4

700116177

SUPPORT

(Includes item 6)

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

6

740514

BUSHING,31.81mm ID x 38.2mm OD x 50.8mm L

- oilite

2шт.

7

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

8

6551394

SHIM

4шт.

9

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

10

700125069

SPACER

2шт.

11

700709190

GEARBOX ASSY

GEARBOX

1шт.

12

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

BUSHING - reducer

1шт.

13

152127H1

BREATHER,1/8"-27, Short

- vent

1шт.

14

700119133

MOUNTING PARTS

MOUNT - pump

1шт.

15

111-622

CARRIAGE BOLT,Short NK 5/8" -11 x 2 1/4", G5

5/8-11 X 2-1/4 RHSNB

1шт.

16

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

17

425-1010

NUT,5/8"-11, G5

1шт.

18

700119717

MOUNTING PARTS

MOUNT - sensor

1шт.

19

700117086

STRAP

1шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

22

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

23

700116094

MOUNTING PARTS

MOUNT - switch

1шт.

24

700118822

SPACER

1шт.

25

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

5/8 X 18 GAUGE NRMB

1шт.

26

700708998

SPROCKET ASSY.

SPROCKET - 40B17 tooth

1шт.

27

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

29

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

30

700708338

LINK

#40 CONNECTOR LINK

1шт.

31

700707710

CHAIN (AG)

#40 CHAIN - roller, O-Ring

1шт.

32

47977

SPROCKET ASSY.

SPROCKET - idler, 18 tooth

1шт.

33

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

34

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

35

700707234

BUTTON

KNOB

1шт.

36

700125103

PLATE

1шт.

37

700125072

PLATE

WA

1шт.

38

61-832

HEX SOC SCREW,1/2"-13 x 2"

1/2-13 X 2 HSHCS SPL

2шт.
