(9-70) - MESH WRAP KIT, ROLLER ASSEMBLY, SERIAL NUMBER CFH0073272 AND LATER

Запчасти Case IH 8460 (9-70) - MESH WRAP KIT, ROLLER ASSEMBLY, SERIAL NUMBER CFH0073272 AND LATER Decals & Attachments

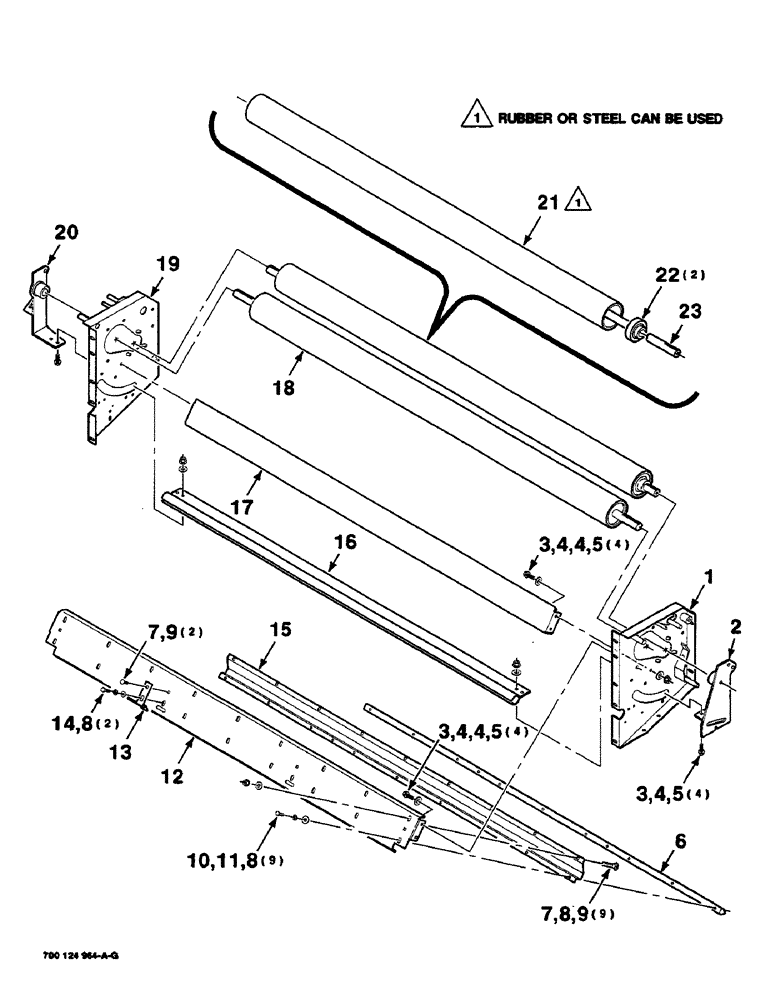

Схема запчастей Case IH 8460 - (9-70) - MESH WRAP KIT, ROLLER ASSEMBLY, SERIAL NUMBER CFH0073272 AND LATER Decals & Attachments
4
18
8
4
13
15
5
6
20
7
1
4
21
16
3
2
4
3
8
12
14
10
8
9
7
5
22
19
5
3
17
11
4
23
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700124962

PANEL

WA - left

1шт.

2

700125821

SUPPORT

WA - left

1шт.

3

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

12шт.

4

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

20шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

12шт.

6

700125812

BUMPER

1шт.

7

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

11шт.

8

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

20шт.

9

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

11шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

9шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

12

700124969

SUPPORT

1шт.

13

700125817

SUPPORT

WA

1шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

2шт.

15

700126767

REINFORCEMENT

1шт.

16

700124960

KNIFE

WA

1шт.

17

700124961

SUPPORT

1шт.

18

700127934

ROLLER

ASSEMBLY

1шт.

19

700124963

PANEL

WA - right

1шт.

20

700125825

SUPPORT

WA - right

1шт.

21

700125700

ROLLER

- rubber

1шт.

700130730

ROLLER

- steel

1шт.

22

51680

BEARING, BALL

BEARING

2шт.

23

700125820

SHAFT

1шт.
