(9-46) - HYDRAULIC CYLINDER ASSEMBLY, 700711411 HYDRAULIC CYLINDER COMPLETE, 1 INCH BORE X 3 INCH STROKE

Запчасти Case IH 8460 (9-46) - HYDRAULIC CYLINDER ASSEMBLY, 700711411 HYDRAULIC CYLINDER COMPLETE, 1 INCH BORE X 3 INCH STROKE Decals & Attachments

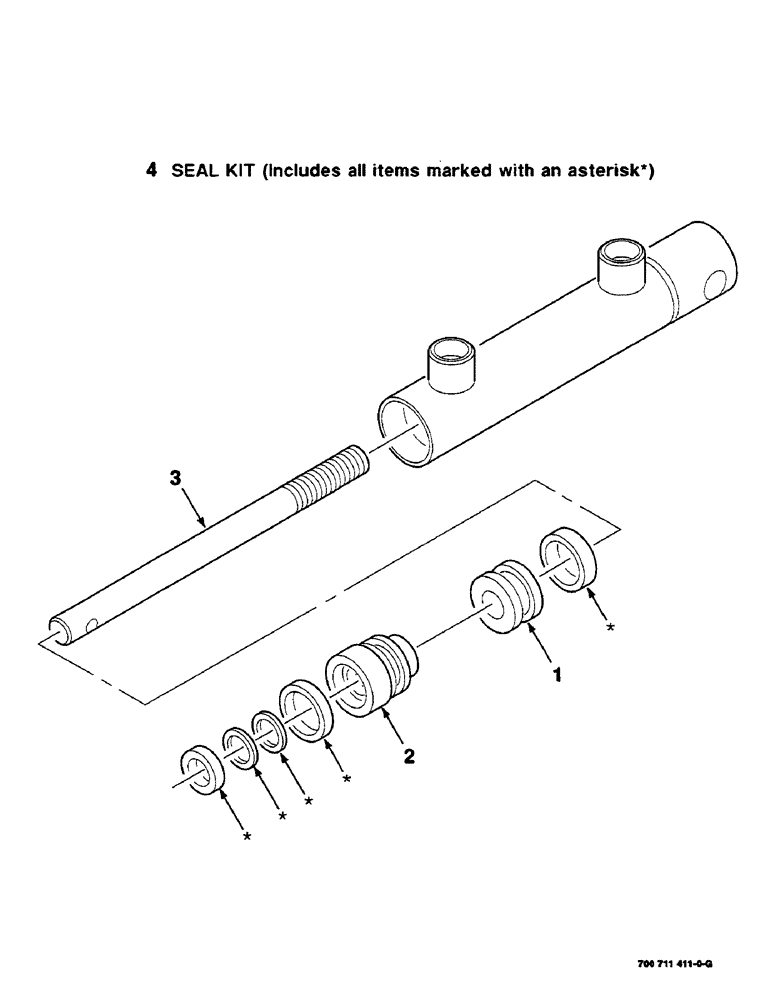

Схема запчастей Case IH 8460 - (9-46) - HYDRAULIC CYLINDER ASSEMBLY, 700711411 HYDRAULIC CYLINDER COMPLETE, 1 INCH BORE X 3 INCH STROKE Decals & Attachments
2
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700711411

CYLINDER

HYDRAULIC CYLINDER COMPLETE (1 Inch bore x 3 inch stroke)

1шт.

1

700712587

PISTON

1шт.

2

700712586

HEAD

1шт.

3

700712589

ROD

1шт.

4

700713286

SEAL

REPAIR KIT Includes: Ref. marked with asterisks in art

1шт.
