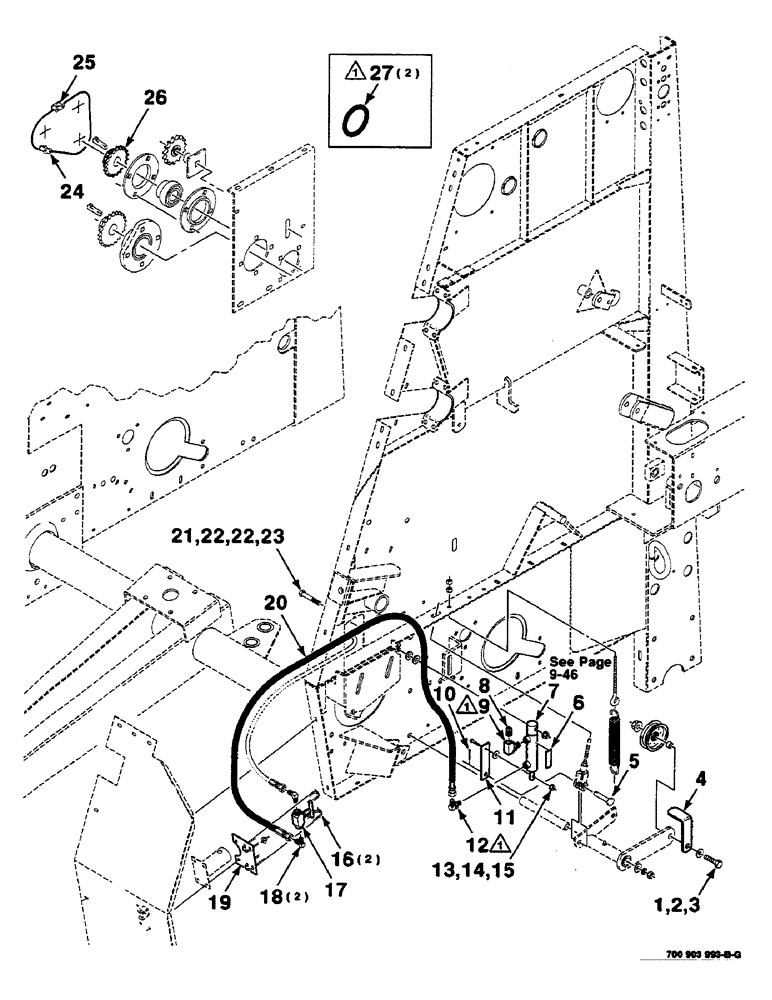

Запчасти Case IH 8460 (9-44) - MESH WRAP KIT, STARTING ROLL DRIVE, PICKUP CLUTCH, SERIAL NUMBER CFH0073272 AND LATER Decals & Attachments

HK50598

MESH WRAP KIT COMPLETE (S.N. CFH0073001 thru CFH0073202)

1шт.

HK50838

MESH WRAP KIT COMPLETE (S.N. CFH0073203 thru CFH0073280)

1шт.

HK50903

MESH WRAP KIT COMPLETE (S.N. CFH0073281 and later)

1шт.

1

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

5/8-11 X 2-3/4 C

1шт.

2

700711165

WASHER,17.3mm ID x 45.21mm OD x 4.06mm Thk

5/8 HARDENED WIDE PLAIN WASHER

1шт.

3

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

4

700124977

ANGLE

1шт.

5

14145H

CLEVIS PIN,1/2" x 2.094"

1/2 X 1-3/4 CLEVIS PIN

1шт.

6

700715705

DECAL

- operational

1шт.

7

700711411

CYLINDER

ASSEMBLY - hydraulic

1шт.

8

700704639

PLUG

- vented

1шт.

9

7791916

ELBOW

- 90 degrees (Includes item 27)

1шт.

10

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

11

700124976

LINK

STRAP

1шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (Includes item 27)

1шт.

14

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

1шт.

15

1703354

NUT

1/4-20 HFTLN GR/G

1шт.

16

529070

CABLE TIE,368.3mm L

TIE - cable

2шт.

17

700711345

VALVE

- needle

1шт.

18

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

1/4 X 90 DEGREE ELBOW

2шт.

19

700136007

PLATE

- mounting

1шт.

20

7796840

HOSE

- hydraulic

1шт.

21

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

1шт.

22

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

23

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

24

241-1316

LINK,19.05mm Pitch

LINK - connector, #60 (W/Spring clip)

1шт.

25

241-1116

LINK,Chain, 19.05mm Pitch

CHAIN - link, R/C #60

1шт.

26

700124968

SPROCKET ASSY.

SPROCKET WA - 60B22 tooth

1шт.

27

738468

O-RING

2шт.

13

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
