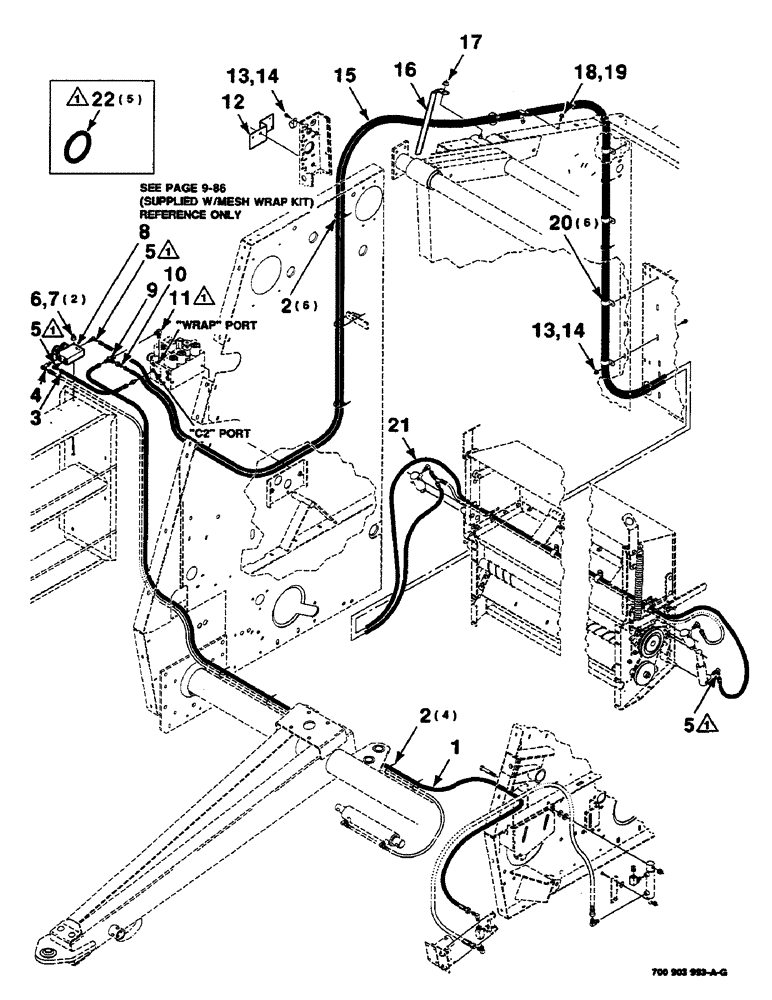

Запчасти Case IH 8460 (9-42) - MESH WRAP ADAPTER KIT, HK50904 MESH WRAP ADAPTER KIT COMPLETE, SERIAL NUMBER CFH0073272 AND LATER Decals & Attachments

HK50904

MESH WRAP ADAPTER KIT COMPLETE

1шт.

1

700715899

HOSE

- hydraulic

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

10шт.

3

700711082

HYDRAULIC HOSE,6.35 mm ID x 270.00 mm, SAE 100R1

6.35 mm ID x 270.00 mm, SAE 100R1

1шт.

4

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degrees (Includes item 22)

1шт.

5

7792500

ELBOW

- 90 degrees (Includes item 22)

3шт.

6

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

.25 X 1.75 UNC GR5 YZD

2шт.

7

1703354

NUT

1/4-20 HFTLN GR/G

2шт.

8

700711967

VALVE

ASSEMBLY - control (Supplied with mesh wrap kit only)

1шт.

9

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

service 37º, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

10

700715895

REDUCER

9/16 X 7/16 JIC ADAPTER

1шт.

11

700707498

ELBOW

7/16 X 9/16 X 90 DEGREE ELBOW (Includes item 22)

1шт.

12

700128332

SUPPORT

- switch

1шт.

13

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

14

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

15

700711007

HYDRAULIC HOSE,6.35 mm ID x 5400.00 mm, SAE 100R1

6.35 mm ID x 5400.00 mm, SAE 100R1

1шт.

16

700130845

GUIDE

1шт.

17

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

18

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

19

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

20

515-23254

CLAMP,1", Insul, 3/8" Bolt

Hose 1", Insul, 3/8" Bolt

6шт.

21

700711008

HYDRAULIC HOSE,6.35 mm ID x 6600.00 mm, SAE 100R1

6.35 mm ID x 6600.00 mm, SAE 100R1

1шт.

22

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

5шт.
