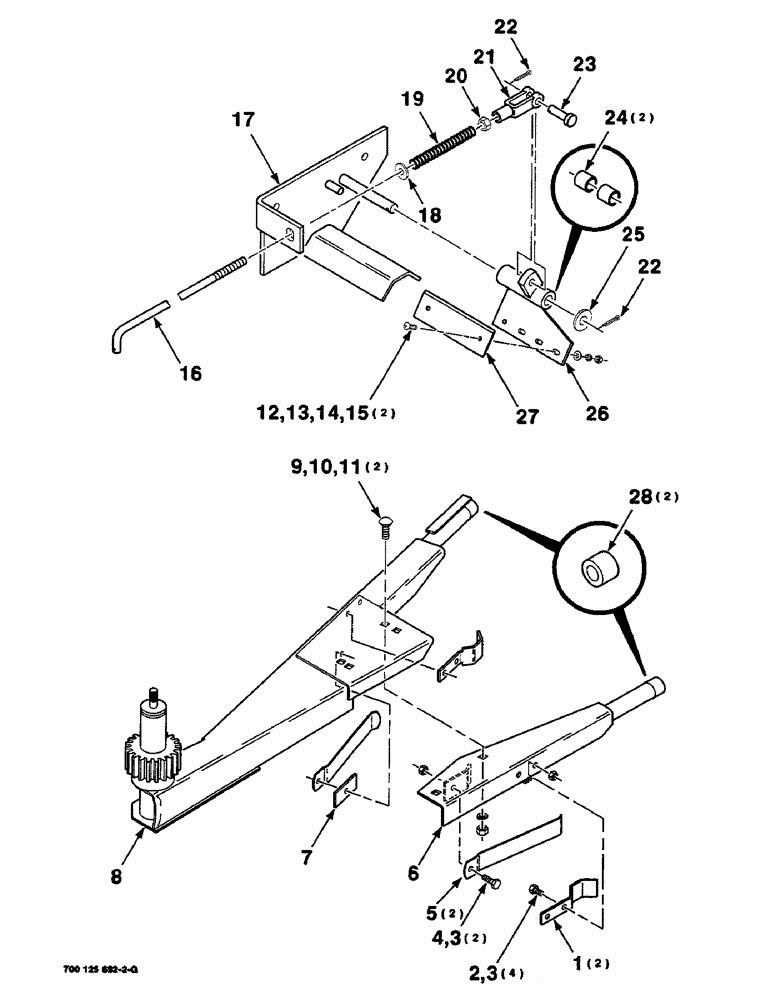

Запчасти Case IH 8460 (9-28) - DUAL TWINE KIT ASSEMBLY, CONTINUED Decals & Attachments

1

700122987

GUIDE

- twine

2шт.

2

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

3

230-4214

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

6шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

700707665

LARGE PLATE

SPRING - leaf

2шт.

6

700122975

ARM

WA - twine (Includes item 27)

1шт.

7

700122988

LARGE PLATE

PLATE

1шт.

8

700122980

ARM

WA - twine (Includes item 27)

1шт.

9

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

425-105

NUT,5/16"-18, G5

2шт.

12

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS GR2

2шт.

13

495-31022

WASHER,#10

2шт.

14

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

15

225-14110

NUT,#10-24

2шт.

16

700122974

STEM

ROD

1шт.

17

700125067

SUPPORT

WA - cutoff

1шт.

18

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

19

700707199

SPRING

- compression

1шт.

20

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

21

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, ADJUSTABLE, 3/8"-24 x 2 1/2"

1шт.

22

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

23

063586

CLEVIS PIN

3/8 X 1-1/8 CLEVIS PIN

1шт.

24

740084

BRONZE BUSHING

BUSHING - bronze

2шт.

25

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

1шт.

26

700119129

MOUNTING PARTS

MOUNTING WA - knife (Includes item 23)

1шт.

27

700710761

KNIFE

- twine

1шт.

28

700107983

GUIDE

2шт.
