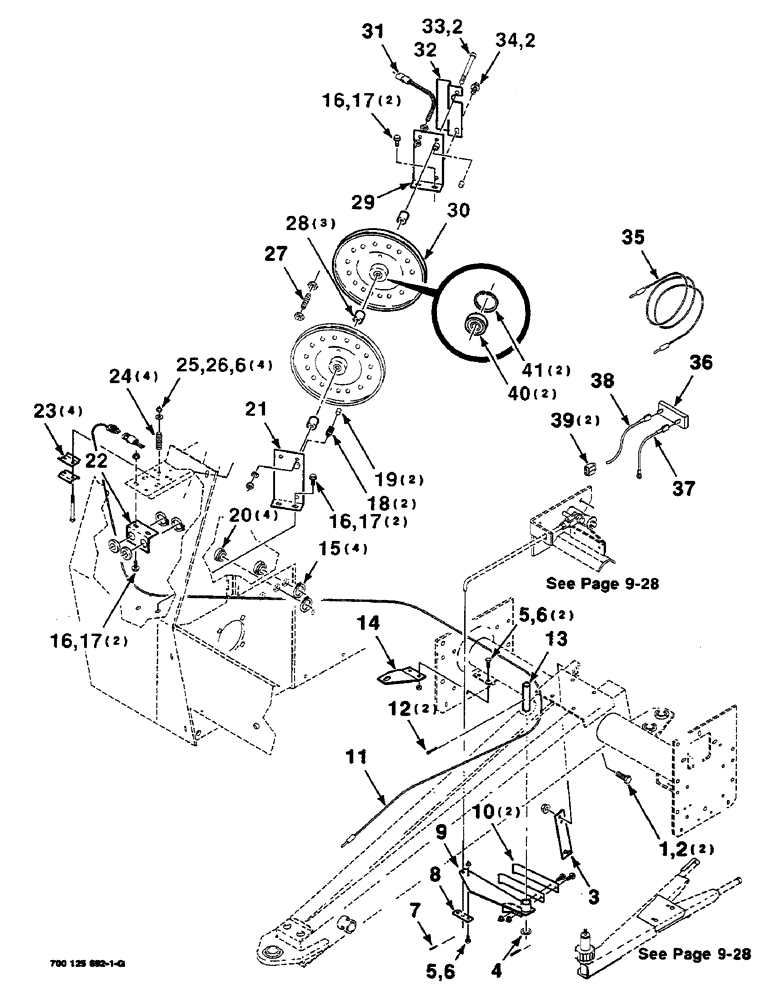

Запчасти Case IH 8460 (9-26) - DUEL TWINE KIT ASSEMBLY, 700125692 DUEL TWINE KIT COMPLETE, SERIAL NUMBER CFH0057417 AND EARLIER Decals & Attachments

700125692

KIT

DUEL TWINE KIT COMPLETE

1шт.

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

2

231-5146

FLANGE NUT,3/8"-16

4шт.

3

700119936

GUIDE

PLATE

1шт.

4

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

1 X 10 GAUGE NRMB

1шт.

5

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

6

232-4114

LOCK NUT,1/4"-20, GC

1/4-20 HTLN GR B

7шт.

7

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

1шт.

8

700125064

MOUNTING PARTS

MOUNT - magnet

1шт.

9

700122971

LEVER

WA

1шт.

10

700710074

LARGE PLATE

SPRING - leaf

2шт.

11

700711294

ELECTRICAL WIRE

WIRE - assembly

1шт.

12

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

2шт.

13

700122970

MOUNTING PARTS

SHAFT

1шт.

14

700122969

PLATE

1шт.

15

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

4шт.

16

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

18

858183

SPRING

- compression

2шт.

19

700122575

BUTTON

- nylon

2шт.

20

700107977

GUIDE

- twine

4шт.

21

700122990

SUPPORT

WA - front

1шт.

22

700119984

SUPPORT

1шт.

23

700122989

BRACKET

- tension

4шт.

24

700707677

SPRING

- compression

4шт.

25

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

1/4-20 X 2-3/4 C

4шт.

26

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

4шт.

27

700710211

ACTUATOR

1шт.

28

700116070

SPACER

3шт.

29

700122968

SUPPORT

WA - rear

1шт.

30

700116222

PULLEY ASSY.

PULLEY ASSEMBLY (Includes items 40 and 41)

1шт.

31

700119161

SWITCH

SENSOR

1шт.

32

700119985

SHIELD

1шт.

33

413-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

3/8-16 X 5-1/2 C

1шт.

34

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.

35

700711293

ELECTRICAL WIRE

WIRE ASSEMBLY

1шт.

36

700707459

INDICATOR

LIGHT ASSEMBLY

1шт.

37

700710793

ELECTRICAL WIRE

WIRE ASSEMBLY

1шт.

38

700711282

ELECTRICAL WIRE

WIRE ASSEMBLY

1шт.

39

700709784

CONNECTOR, ELEC

SPLICE LOCK

2шт.

40

D38346

BALL BEARING,10 mm ID x 30 mm OD x 9 mm

BEARING - cylindrical

2шт.

41

100-21118

SNAP RING,1.188", Int, #118

Ring, Snap, 1.188", Int, #118

2шт.
