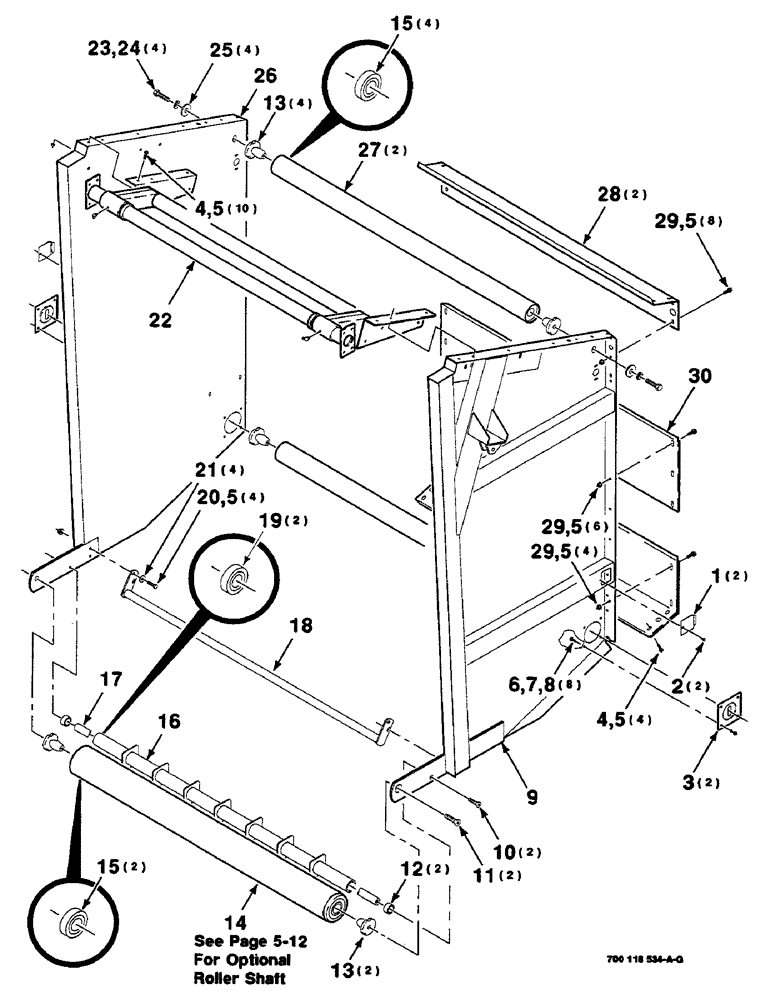

Запчасти Case IH 8460 (5-04) - TAILGATE ASSEMBLY, SERIAL NUMBER CFH0016501 THROUGH CFH0057722 (16) - BALE EJECTOR

1

700125158

LARGE PLATE

PLATE

2шт.

2

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

1/4-20 X 1/2 HWHTCTS

2шт.

3

700125148

PLUG

2шт.

4

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

14шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

36шт.

6

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

8

425-105

NUT,5/16"-18, G5

8шт.

9

700114321

SIDE ASSY.

SIDE WA - left, tailgate

1шт.

700124620

SIDE ASSY.

SIDE WA - left, tailgate

1шт.

10

61-43820

HEX SOC SCREW,FLAT, 3/8" x 1-1/4"

3/8-16 X 1-1/4 HSFCHCS

2шт.

11

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 X 1-3/4 HSFCHCS

2шт.

12

6467674

SPACER

2шт.

13

700100927

HUB

6шт.

14

700114379

ROLLER ASSY.

ROLLER ASSEMBLY (Includes item 15)

1шт.

700130852

ROLLER

ASSEMBLY

1шт.

15

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

6шт.

16

700114384

ROLLER ASSY.

ROLLER ASSEMBLY (Includes item 19)

1шт.

700125801

ROLLER

ASSEMBLY (Includes item 19)

1шт.

17

700119682

SHAFT

- roller

1шт.

18

700122470

SUPPORT

GUIDE WA

1шт.

19

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

BEARING - cylindrical

2шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

21

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

22

700114273

HINGE

SUPPORT WA - tailgate

1шт.

23

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

3/4-10 x 1-3/4 C

4шт.

24

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

25

705566

WASHER

3/4 HARDENED PLAIN WASHER

4шт.

26

700114323

SIDE ASSY.

SIDE WA - right, tailgate

1шт.

700124621

SIDE ASSY.

SIDE WA - right, tailgate

1шт.

27

700116170

ROLLER

ASSEMBLY (Includes item 15)

2шт.

700124612

ROLLER

ASSEMBLY (Includes item 15)

2шт.

28

700114351

SUPPORT

- tailgate

2шт.

29

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

18шт.

30

700114353

SUPPORT

- SMV

1шт.
