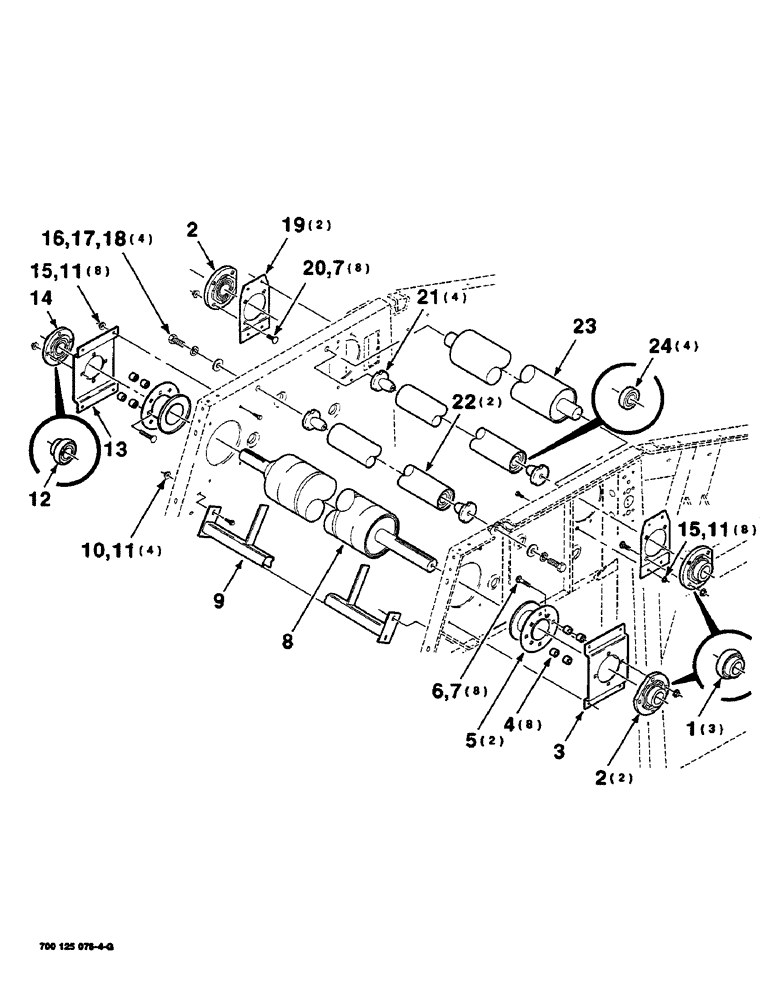

Запчасти Case IH 8460 (6-16) - ROLLERS AND FORMING BELT GUIDE ASSEMBLIES, UPPER, SERIAL NUMBER CFH0058102 AND LATER (14) - BALE CHAMBER

1

712158

SPHERICAL BEARING,2" ID x 100 mm OD

BEARING - spherical

3шт.

2

700109753

BEARING ASSY,97 mm ID x 108 mm OD x 33 mm

BEARING ASSEMBLY (Includes item 1)

3шт.

3

700107963

SUPPORT

- upper, left

1шт.

4

700126902

SPACER

8шт.

5

700124609

FLANGE

RING WA - grass

2шт.

6

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 X 2-1/4 RHSNB

8шт.

7

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

16шт.

8

700712187

ROLLER

ASSEMBLY - rubber

1шт.

9

700107930

GUIDE

WA

1шт.

10

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

4шт.

11

231-5146

FLANGE NUT,3/8"-16

20шт.

12

51318

BEARING

- spherical

1шт.

13

700107964

SUPPORT

- upper, right

1шт.

14

700110467

BEARING ASSY,44.45 mm ID x 92.44 mm OD x 29 mm

BEARING ASSEMBLY (Includes item 12)

1шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

16шт.

16

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

3/4-10 x 1-3/4 C

4шт.

17

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

18

705566

WASHER

3/4 HARDENED PLAIN WASHER

4шт.

19

700114406

PLATE

SUPPORT - upper

2шт.

20

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

8шт.

21

700100927

HUB

4шт.

22

700116170

ROLLER

ASSEMBLY (Includes item 24)

2шт.

700124612

ROLLER

ASSEMBLY (Includes item 24)

2шт.

23

700114372

ROLLER

WA

1шт.

24

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

4шт.
